DETERMINING SHORT TO GROUND LOCATION (HS-CAN) [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (R.H.D.)]

id100209000600

Caution

•  Perform the following malfunction diagnosis only when it is diagnosed with a short to ground by CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (R.H.D.)]. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (R.H.D.)].)

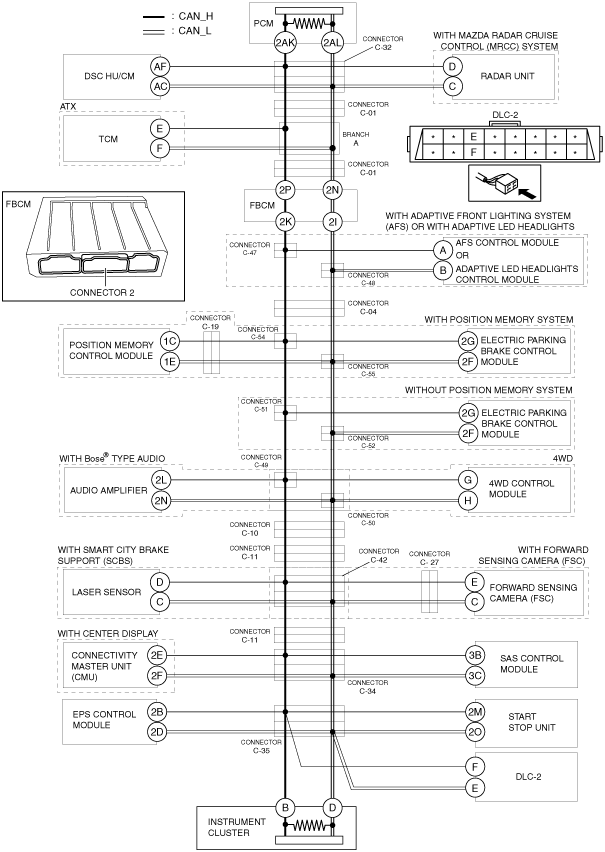

System Wiring Diagram

ac5wzw00008243

Determination Procedure

Caution

•  When disconnecting the connector, verify that there is no looseness, damage, deformation, corrosion, or poor connection of the connector terminals.

•  When inspecting the DLC-2, touch it with a paper clip or similar thin pin without directly inserting a tester into the terminals.

Step	Inspection		Action
1	INSPECT FOR SHORT TO GROUND BETWEEN FRONT BODY CONTROL MODULE (FBCM) AND INSTRUMENT CLUSTER •  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) •  Disconnect connector 2 which has front body control module (FBCM) terminals 2P and 2N. •  Inspect for continuity at the following terminals: ―  Between DLC-2 terminal F and body ground ―  Between DLC-2 terminal E and body ground •  Is there continuity?	Yes	Go to Step 3.
		No	Go to the next step.
2	INSPECT CAN LINE INSIDE FRONT BODY CONTROL MODULE (FBCM) FOR SHORT TO GROUND •  Inspect for continuity at the following terminals: ―  Between front body control module (FBCM) terminal 2P and body ground ―  Between front body control module (FBCM) terminal 2N and body ground •  Is there continuity?	Yes	Replace the front body control module (FBCM) because there is a short to ground in the front body control module (FBCM). (See FRONT BODY CONTROL MODULE (FBCM) REMOVAL/INSTALLATION.)
		No	Go to Step 42.
3	INSPECT FOR SHORT TO GROUND BETWEEN CONNECTORS C-47 AND C-48 AND INSTRUMENT CLUSTER •  Disconnect connectors C-47 and C-48. •  Inspect for continuity at the following terminals: ―  Between DLC-2 terminal F and body ground ―  Between DLC-2 terminal E and body ground •  Is there continuity?	Yes	Go to Step 6.
		No	Go to the next step.
4	INSPECT FOR SHORT TO GROUND BETWEEN AFS CONTROL MODULE OR ADAPTIVE LED HEADLIGHTS CONTROL MODULE AND CONNECTORS C-47 AND C-48 •  Inspect for continuity at the following terminals: ―  Between AFS control module or adaptive LED headlights control module terminal A and body ground ―  Between AFS control module or adaptive LED headlights control module terminal B and body ground •  Is there continuity?	Yes	Go to the next step.
		No	Repair or replace the wiring harness between the front body control module (FBCM) and connectors C-47 and C-48 because the wiring harness is shorted to ground.
5	INSPECT CAN LINE IN AFS CONTROL MODULE OR ADAPTIVE LED HEADLIGHTS CONTROL MODULE FOR SHORT TO GROUND •  Disconnect the AFS control module or adaptive LED headlights control module connector. •  Inspect for continuity at the following terminals: ―  Between AFS control module or adaptive LED headlights control module terminal A (wiring harness side) and body ground ―  Between AFS control module or adaptive LED headlights control module terminal B (wiring harness side) and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between the AFS control module or adaptive LED headlights control module and connectors C-47 and C-48 because the wiring harness is shorted to ground.
		No	Replace the AFS control module or adaptive LED headlights control module because there is a short to ground in the AFS control module or adaptive LED headlights control module. (See ADAPTIVE FRONT LIGHTING SYSTEM (AFS) CONTROL MODULE REMOVAL/INSTALLATION.) (See ADAPTIVE LED HEADLIGHTS CONTROL MODULE REMOVAL/INSTALLATION.)
6	INSPECT FOR SHORT TO GROUND BETWEEN CONNECTOR C-04 AND INSTRUMENT CLUSTER •  Disconnect connector C-04. •  Inspect for continuity at the following terminals: ―  Between DLC-2 terminal F and body ground ―  Between DLC-2 terminal E and body ground •  Is there continuity?	Yes	•  Go to the next step. (with memory power seat) •  Go to Step 13. (without memory power seat)
		No	Repair or replace the wiring harness between the connectors C-47 and C-48 and connector C-04 because the wiring harness is shorted to ground.
7	INSPECT FOR SHORT TO GROUND BETWEEN CONNECTORS C-54 AND C-55 AND INSTRUMENT CLUSTER •  Disconnect connectors C-54 and C-55. •  Inspect for continuity at the following terminals: ―  Between DLC-2 terminal F and body ground ―  Between DLC-2 terminal E and body ground •  Is there continuity?	Yes	Go to Step 16.
		No	Go to the next step.
8	INSPECT FOR SHORT TO GROUND BETWEEN POSITION MEMORY CONTROL MODULE AND CONNECTORS C-54 AND C-55 •  Inspect for continuity at the following terminals: ―  Between position memory control module terminal 1C and body ground ―  Between position memory control module terminal 1E and body ground •  Is there continuity?	Yes	Go to the next step.
		No	Go to Step 11.
9	INSPECT FOR SHORT TO GROUND BETWEEN POSITION MEMORY CONTROL MODULE AND CONNECTOR C-19 •  Disconnect connector C-19. •  Inspect for continuity at the following terminals: ―  Between position memory control module terminal 1C and body ground ―  Between position memory control module terminal 1E and body ground •  Is there continuity?	Yes	Go to the next step.
		No	Repair or replace the wiring harness between connector C-19 and connectors C-54 and C-55 because the wiring harness is shorted to ground.
10	INSPECT CAN LINE IN POSITION MEMORY CONTROL MODULE FOR SHORT TO GROUND •  Disconnect the position memory control module connector. •  Inspect for continuity at the following terminals: ―  Between position memory control module terminal 1C (wiring harness side) and body ground ―  Between position memory control module terminal 1E (wiring harness side) and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between the position memory control module and connector C-19 because the wiring harness is shorted to ground.
		No	Replace the position memory control module because there is a short to ground in the position memory control module. (See POSITION MEMORY CONTROL MODULE REMOVAL/INSTALLATION.)
11	INSPECT FOR SHORT TO GROUND BETWEEN ELECTRIC PARKING BRAKE CONTROL MODULE AND CONNECTORS C-54 AND C-55 •  Inspect for continuity at the following terminals: ―  Between electric parking brake control module terminal 2G and body ground ―  Between electric parking brake control module terminal 2F and body ground •  Is there continuity?	Yes	Go to the next step.
		No	Repair or replace the wiring harness between connector C-04 and connectors C-54 and C-55 because the wiring harness is shorted to ground.
12	INSPECT CAN LINE IN ELECTRIC PARKING BRAKE CONTROL MODULE FOR SHORT TO GROUND •  Disconnect the electric parking brake control module connector. •  Inspect for continuity at the following terminals: ―  Between electric parking brake control module terminal 2G (wiring harness side) and body ground ―  Between electric parking brake control module terminal 2F (wiring harness side) and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between the electric parking brake control module and connectors C-54 and C-55 because the wiring harness is shorted to ground.
		No	Replace the electric parking brake control module because there is a short to ground in the electric parking brake control module. (See ELECTRIC PARKING BRAKE CONTROL MODULE REMOVAL/INSTALLATION.)
13	INSPECT FOR SHORT TO GROUND BETWEEN CONNECTORS C-51 AND C-52 AND INSTRUMENT CLUSTER •  Disconnect connectors C-51 and C-52. •  Inspect for continuity at the following terminals: ―  Between DLC-2 terminal F and body ground ―  Between DLC-2 terminal E and body ground •  Is there continuity?	Yes	Go to Step 16.
		No	Go to the next step.
14	INSPECT FOR SHORT TO GROUND BETWEEN ELECTRIC PARKING BRAKE CONTROL MODULE AND CONNECTORS C-51 AND C-52 •  Inspect for continuity at the following terminals: ―  Between electric parking brake control module terminal 2G and body ground ―  Between electric parking brake control module terminal 2F and body ground •  Is there continuity?	Yes	Go to the next step.
		No	Repair or replace the wiring harness between connector C-04 and connectors C-51 and C-52 because the wiring harness is shorted to ground.
15	INSPECT CAN LINE IN ELECTRIC PARKING BRAKE CONTROL MODULE FOR SHORT TO GROUND •  Disconnect the electric parking brake control module connector. •  Inspect for continuity at the following terminals: ―  Between electric parking brake control module terminal 2G (wiring harness side) and body ground ―  Between electric parking brake control module terminal 2F (wiring harness side) and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between the electric parking brake control module and connectors C-51 and C-52 because the wiring harness is shorted to ground.
		No	Replace the electric parking brake control module because there is a short to ground in the electric parking brake control module. (See ELECTRIC PARKING BRAKE CONTROL MODULE REMOVAL/INSTALLATION.)
16	INSPECT FOR SHORT TO GROUND BETWEEN CONNECTORS C-49 AND C-50 AND INSTRUMENT CLUSTER •  Disconnect connectors C-49 and C-50. •  Inspect for continuity at the following terminals: ―  Between DLC-2 terminal F and body ground ―  Between DLC-2 terminal E and body ground •  Is there continuity?	Yes	Go to Step 21.
		No	Go to the next step.
17	INSPECT FOR SHORT TO GROUND BETWEEN AUDIO AMPLIFIER AND CONNECTORS C-49 AND C-50 •  Inspect for continuity at the following terminals: ―  Between audio amplifier terminal 2L and body ground ―  Between audio amplifier terminal 2N and body ground •  Is there continuity?	Yes	Go to the next step.
		No	Go to Step 19.
18	INSPECT CAN LINE IN AUDIO AMPLIFIER FOR SHORT TO GROUND •  Disconnect the audio amplifier connector. •  Inspect for continuity at the following terminals: ―  Between audio amplifier terminal 2L (wiring harness side) and body ground ―  Between audio amplifier terminal 2N (wiring harness side) and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between the audio amplifier and connectors C-49 and C-50 because the wiring harness is shorted to ground.
		No	Replace the audio amplifier because there is a short to ground in the audio amplifier. (See AUDIO AMPLIFIER REMOVAL/INSTALLATION.)
19	INSPECT FOR SHORT TO GROUND BETWEEN 4WD CONTROL MODULE AND CONNECTORS C-49 AND C-50 •  Inspect for continuity at the following terminals: ―  Between 4WD control module terminal G and body ground ―  Between 4WD control module terminal H and body ground •  Is there continuity?	Yes	Go to the next step.
		No	•  Repair or replace the wiring harness between connectors C-54 and C-55 and connectors C-49 and C-50 because the wiring harness is shorted to ground. (with memory power seat) •  Repair or replace the wiring harness between connectors C-51 and C-52 and connectors C-49 and C-50 because the wiring harness is shorted to ground. (without memory power seat)
20	INSPECT CAN LINE IN 4WD CONTROL MODULE FOR SHORT TO GROUND •  Disconnect the 4WD control module connector. •  Inspect for continuity at the following terminals: ―  Between 4WD control module terminal G (wiring harness side) and body ground ―  Between 4WD control module terminal H (wiring harness side) and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between the 4WD control module and connectors C-49 and C-50 because the wiring harness is shorted to ground.
		No	Replace the 4WD control module because there is a short to ground in the 4WD control module. (See 4WD CONTROL MODULE REMOVAL/INSTALLATION.)
21	INSPECT FOR SHORT TO GROUND BETWEEN CONNECTOR C-10 AND INSTRUMENT CLUSTER •  Disconnect connector C-10. •  Inspect for continuity at the following terminals: ―  Between DLC-2 terminal F and body ground ―  Between DLC-2 terminal E and body ground •  Is there continuity?	Yes	Go to the next step.
		No	Repair or replace the wiring harness between connectors C-49 and C-50 and connector C-10 because the wiring harness is shorted to ground.
22	INSPECT FOR SHORT TO GROUND BETWEEN CONNECTOR C-10 AND CONNECTOR C-11 •  Disconnect connector C-11. •  Connect connector C-10. •  Connect connectors C-49 and C-50. •  Connect connectors C-51 and C-52. •  Connect connectors C-54 and C-55. •  Connect connector C-04. •  Connect connectors C-47 and C-48. •  Inspect for continuity at the following terminals: ―  Between front body control module (FBCM) terminal 2K (wiring harness side) and body ground ―  Between front body control module (FBCM) terminal 2I (wiring harness side) and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between connector C-10 and connector C-11 because the wiring harness is shorted to ground.
		No	Go to the next step.
23	INSPECT FOR SHORT TO GROUND BETWEEN CONNECTOR C-11 AND INSTRUMENT CLUSTER •  Inspect for continuity at the following terminals: ―  Between DLC-2 terminal F and body ground ―  Between DLC-2 terminal E and body ground •  Is there continuity?	Yes	Go to Step 30.
		No	Go to the next step.
24	INSPECT FOR SHORT TO GROUND BETWEEN CONNECTOR C-42 AND CONNECTOR C-11 •  Connect connector C-11. •  Disconnect connector C-42. •  Inspect for continuity at the following terminals: ―  Between DLC-2 terminal F and body ground ―  Between DLC-2 terminal E and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between connector C-42 and connector C-11 because the wiring harness is shorted to ground.
		No	Go to the next step.
25	INSPECT FOR SHORT TO GROUND BETWEEN LASER SENSOR AND CONNECTOR C-42 •  Inspect for continuity at the following terminals: ―  Between laser sensor terminal D and body ground ―  Between laser sensor terminal C and body ground •  Is there continuity?	Yes	Go to the next step.
		No	Go to Step 27.
26	INSPECT CAN LINE IN LASER SENSOR FOR SHORT TO GROUND •  Disconnect the laser sensor connector. •  Inspect for continuity at the following terminals: ―  Between laser sensor terminal D (wiring harness side) and body ground ―  Between laser sensor terminal C (wiring harness side) and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between the laser sensor and connector C-42 because the wiring harness is shorted to ground.
		No	Replace the laser sensor because there is a short to ground in the laser sensor. (See LASER SENSOR REMOVAL/INSTALLATION.)
27	INSPECT FOR SHORT TO GROUND BETWEEN FORWARD SENSING CAMERA (FSC) AND CONNECTOR C-42 •  Inspect for continuity at the following terminals: ―  Between forward sensing camera (FSC) terminal E and body ground ―  Between forward sensing camera (FSC) terminal C and body ground •  Is there continuity?	Yes	Go to the next step.
		No	Repair or replace the wiring harness between connector C-11 and connector C-42 because the wiring harness is shorted to ground.
28	INSPECT FOR SHORT TO GROUND BETWEEN FORWARD SENSING CAMERA (FSC) AND CONNECTOR C-27 •  Disconnect connector C-27. •  Inspect for continuity at the following terminals: ―  Between forward sensing camera (FSC) terminal E and body ground ―  Between forward sensing camera (FSC) terminal C and body ground •  Is there continuity?	Yes	Go to the next step.
		No	Repair or replace the wiring harness between connector C-42 and connector C-27 because the wiring harness is shorted to ground.
29	INSPECT CAN LINE IN FORWARD SENSING CAMERA (FSC) FOR SHORT TO GROUND •  Disconnect the forward sensing camera (FSC) connector. •  Inspect for continuity at the following terminals: ―  Between forward sensing camera (FSC) terminal E (wiring harness side) and body ground ―  Between forward sensing camera (FSC) terminal C (wiring harness side) and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between the forward sensing camera (FSC) and connector C-27 because the wiring harness is shorted to ground.
		No	Replace the forward sensing camera (FSC) because there is a short to ground in the forward sensing camera (FSC). (See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION.)
30	INSPECT FOR SHORT TO GROUND BETWEEN CONNECTOR C-34 AND INSTRUMENT CLUSTER •  Disconnect connector C-34. •  Inspect for continuity at the following terminals: ―  Between DLC-2 terminal F and body ground ―  Between DLC-2 terminal E and body ground •  Is there continuity?	Yes	Go to Step 35.
		No	Go to the next step.
31	INSPECT FOR SHORT TO GROUND BETWEEN CONNECTIVITY MASTER UNIT (CMU) AND CONNECTOR C-34 •  Inspect for continuity at the following terminals: ―  Between connectivity master unit (CMU) terminal 2E and body ground ―  Between connectivity master unit (CMU) terminal 2F and body ground •  Is there continuity?	Yes	Go to the next step.
		No	Go to Step 33.
32	INSPECT CAN LINE IN CONNECTIVITY MASTER UNIT (CMU) FOR SHORT TO GROUND •  Disconnect the connectivity master unit (CMU) connector. •  Inspect for continuity at the following terminals: ―  Between connectivity master unit (CMU) terminal 2E (wiring harness side) and body ground ―  Between connectivity master unit (CMU) terminal 2F (wiring harness side) and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between the connectivity master unit (CMU) and connector C-34 because the wiring harness is shorted to ground.
		No	Replace the connectivity master unit (CMU) because there is a short to ground in the connectivity master unit (CMU). (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION.)
33	INSPECT FOR SHORT TO GROUND BETWEEN SAS CONTROL MODULE AND CONNECTOR C-34 •  Inspect for continuity at the following terminals: ―  Between SAS control module terminal 3B and body ground ―  Between SAS control module terminal 3C and body ground •  Is there continuity?	Yes	Go to the next step.
		No	Repair or replace the wiring harness between connector C-11 and connector C-34 because the wiring harness is shorted to ground.
34	INSPECT CAN LINE IN SAS CONTROL MODULE FOR SHORT TO GROUND •  Disconnect the SAS control module connector. •  Inspect for continuity at the following terminals: ―  Between SAS control module terminal 3B (wiring harness side) and body ground ―  Between SAS control module terminal 3C (wiring harness side) and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between the SAS control module and connector C-34 because the wiring harness is shorted to ground.
		No	Replace the SAS control module because there is a short to ground in the SAS control module. (See SAS CONTROL MODULE REMOVAL/INSTALLATION.)
35	INSPECT FOR SHORT TO GROUND BETWEEN CONNECTOR C-35 AND DLC-2 •  Disconnect connector C-35. •  Inspect for continuity at the following terminals: ―  Between DLC-2 terminal F and body ground ―  Between DLC-2 terminal E and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between connector C-35 and DLC-2 because the wiring harness is shorted to ground.
		No	Go to the next step.
36	INSPECT FOR SHORT TO GROUND BETWEEN EPS CONTROL MODULE AND CONNECTOR C-35 •  Inspect for continuity at the following terminals: ―  Between EPS control module terminal 2B and body ground ―  Between EPS control module terminal 2D and body ground •  Is there continuity?	Yes	Go to the next step.
		No	Go to Step 38.
37	INSPECT CAN LINE IN EPS CONTROL MODULE FOR SHORT TO GROUND •  Disconnect the EPS control module connector. •  Inspect for continuity at the following terminals: ―  Between EPS control module terminal 2B (wiring harness side) and body ground ―  Between EPS control module terminal 2D (wiring harness side) and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between the EPS control module and connector C-35 because the wiring harness is shorted to ground.
		No	Replace the EPS control module because there is a short to ground in the EPS control module. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)
38	INSPECT FOR SHORT TO GROUND BETWEEN START STOP UNIT AND CONNECTOR C-35 •  Inspect for continuity at the following terminals: ―  Between start stop unit terminal 2M and body ground ―  Between start stop unit terminal 2O and body ground •  Is there continuity?	Yes	Go to the next step.
		No	Go to Step 40.
39	INSPECT CAN LINE IN START STOP UNIT FOR SHORT TO GROUND •  Disconnect the start stop unit connector. •  Inspect for continuity at the following terminals: ―  Between start stop unit terminal 2M (wiring harness side) and body ground ―  Between start stop unit terminal 2O (wiring harness side) and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between the start stop unit and connector C-35 because the wiring harness is shorted to ground.
		No	Replace the start stop unit because there is a short to ground in the start stop unit. (See START STOP UNIT REMOVAL/INSTALLATION.)
40	INSPECT FOR SHORT TO GROUND BETWEEN INSTRUMENT CLUSTER AND CONNECTOR C-35 •  Inspect for continuity at the following terminals: ―  Between instrument cluster terminal B and body ground ―  Between instrument cluster terminal D and body ground •  Is there continuity?	Yes	Go to the next step.
		No	Repair or replace the wiring harness between connector C-34 and connector C-35 because the wiring harness is shorted to ground.
41	INSPECT CAN LINE IN INSTRUMENT CLUSTER FOR SHORT TO GROUND •  Disconnect the instrument cluster connector. •  Inspect for continuity at the following terminals: ―  Between instrument cluster terminal B (wiring harness side) and body ground ―  Between instrument cluster terminal D (wiring harness side) and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between the instrument cluster and connector C-35 because the wiring harness is shorted to ground.
		No	Replace the instrument cluster because there is a short to ground in the instrument cluster. (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)
42	INSPECT FOR SHORT TO GROUND BETWEEN CONNECTOR C-01 AND FRONT BODY CONTROL MODULE (FBCM) •  Disconnect connector C-01. •  Connect connector 2 which has front body control module (FBCM) terminals 2P and 2N. •  Inspect for continuity at the following terminals: ―  Between DLC-2 terminal F and body ground ―  Between DLC-2 terminal E and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between connector C-01 and the front body control module (FBCM) because the wiring harness is shorted to ground.
		No	Go to the next step.
43	INSPECT FOR SHORT TO GROUND BETWEEN CONNECTOR C-01 AND TCM •  Inspect for continuity at the following terminals: ―  Between TCM terminal E and body ground ―  Between TCM terminal F and body ground •  Is there continuity?	Yes	Go to the next step.
		No	Go to Step 45.
44	INSPECT CAN LINE IN TCM FOR SHORT TO GROUND •  Disconnect the TCM connector. •  Inspect for continuity at the following terminals: ―  Between TCM terminal E (wiring harness side) and body ground ―  Between TCM terminal F (wiring harness side) and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between the TCM and connector C-01 because the wiring harness is shorted to ground.
		No	Replace the TCM because there is a short to ground in the TCM. (See CONTROL VALVE BODY REMOVAL/INSTALLATION [FW6A-EL, FW6AX-EL].)
45	INSPECT FOR SHORT TO GROUND BETWEEN CONNECTOR C-32 AND C-01 •  Disconnect connector C-32. •  Connect connector C-01. •  Inspect for continuity at the following terminals: ―  Between DLC-2 terminal F and body ground ―  Between DLC-2 terminal E and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between connector C-32 and connector C-01 because the wiring harness is shorted to ground.
		No	Go to the next step.
46	INSPECT FOR SHORT TO GROUND BETWEEN DSC HU/CM AND CONNECTOR C-32 •  Inspect for continuity at the following terminals: ―  Between DSC HU/CM terminal AF and body ground ―  Between DSC HU/CM terminal AC and body ground •  Is there continuity?	Yes	Go to the next step.
		No	Go to Step 48.
47	INSPECT CAN LINE IN DSC HU/CM FOR SHORT TO GROUND •  Disconnect the DSC HU/CM connector. •  Inspect for continuity at the following terminals: ―  Between DSC HU/CM terminal AF (wiring harness side) and body ground ―  Between DSC HU/CM terminal AC (wiring harness side) and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between the DSC HU/CM and connector C-32 because the wiring harness is shorted to ground.
		No	Replace the DSC HU/CM because there is a short to ground in the DSC HU/CM. (See DSC HU/CM REMOVAL/INSTALLATION.)
48	INSPECT FOR SHORT TO GROUND BETWEEN RADAR UNIT AND CONNECTOR C-32 •  Inspect for continuity at the following terminals: ―  Between radar unit terminal D and body ground ―  Between radar unit terminal C and body ground •  Is there continuity?	Yes	Go to the next step.
		No	Go to Step 50.
49	INSPECT CAN LINE IN RADAR UNIT FOR SHORT TO GROUND •  Disconnect the radar unit connector. •  Inspect for continuity at the following terminals: ―  Between radar unit terminal D (wiring harness side) and body ground ―  Between radar unit terminal C (wiring harness side) and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between the radar unit and connector C-32 because the wiring harness is shorted to ground.
		No	Replace the radar unit because there is a short to ground in the radar unit. (See RADAR UNIT REMOVAL/INSTALLATION.)
50	INSPECT CAN LINE IN PCM FOR SHORT TO GROUND •  Disconnect the PCM connector. •  Inspect for continuity at the following terminals: ―  Between PCM terminal 2AK (wiring harness side) and body ground ―  Between PCM terminal 2AL (wiring harness side) and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between the PCM and connector C-32 because the wiring harness is shorted to ground.
		No	Replace the PCM because there is a short to ground in the PCM. (See PCM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
