i-stop CONTROL

id111100000100


i-stop Control Outline


SKYACTIV-G 2.0, SKYACTIV-G 2.5, SKYACTIV-G 2.5T

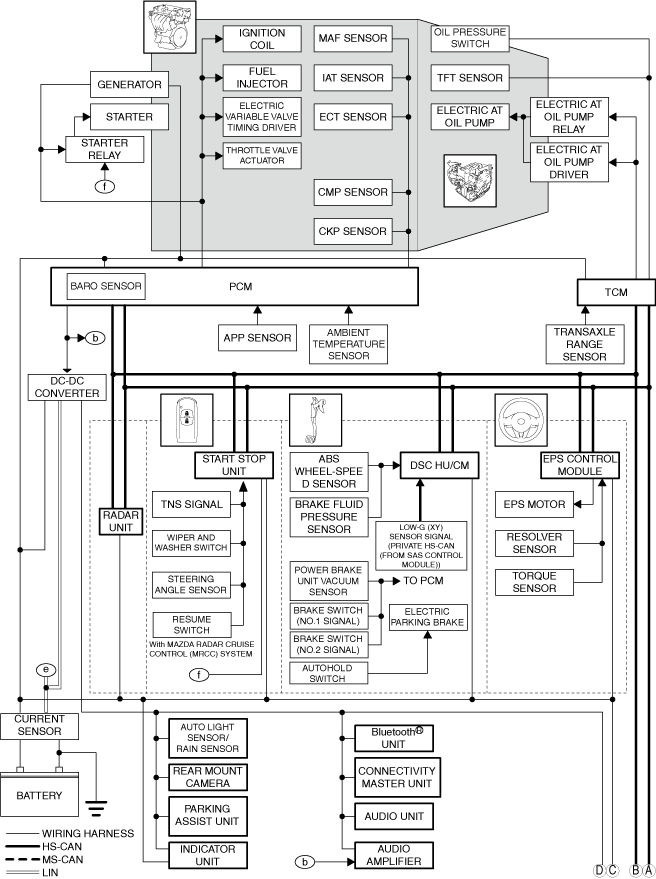

Without i-ELOOP (ATX)

ac5wzn00005595
ac5wzn00005653

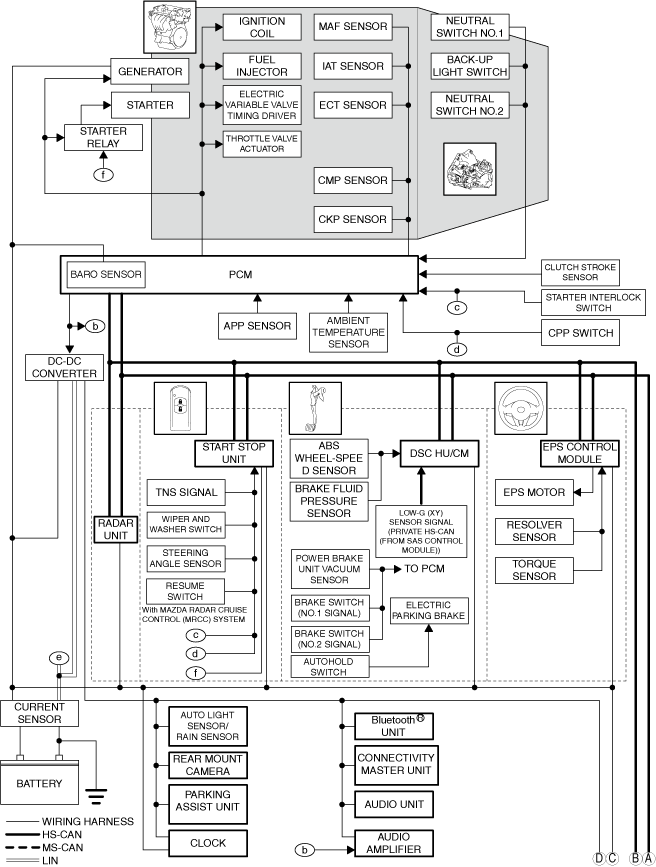

Without i-ELOOP (MTX)

ac5wzn00005596
ac5wzn00005653

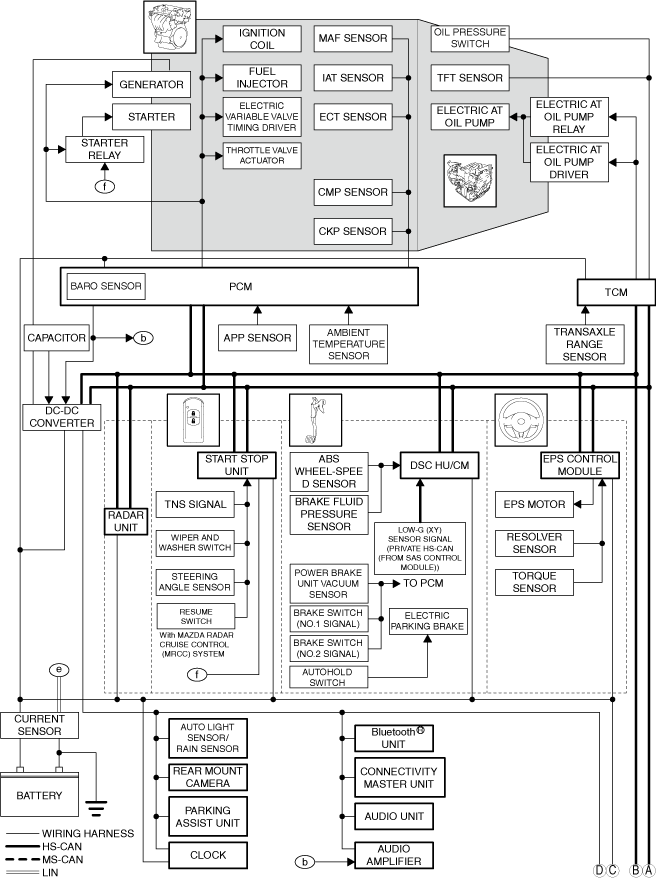

With i-ELOOP (ATX)

ac5wzn00005658
ac5wzn00005653

With i-ELOOP (MTX)

ac5wzn00005654
ac5wzn00005653


SKYACTIV-D 2.2

Without i-ELOOP (ATX)

ac5wzn00005655
ac5wzn00005653

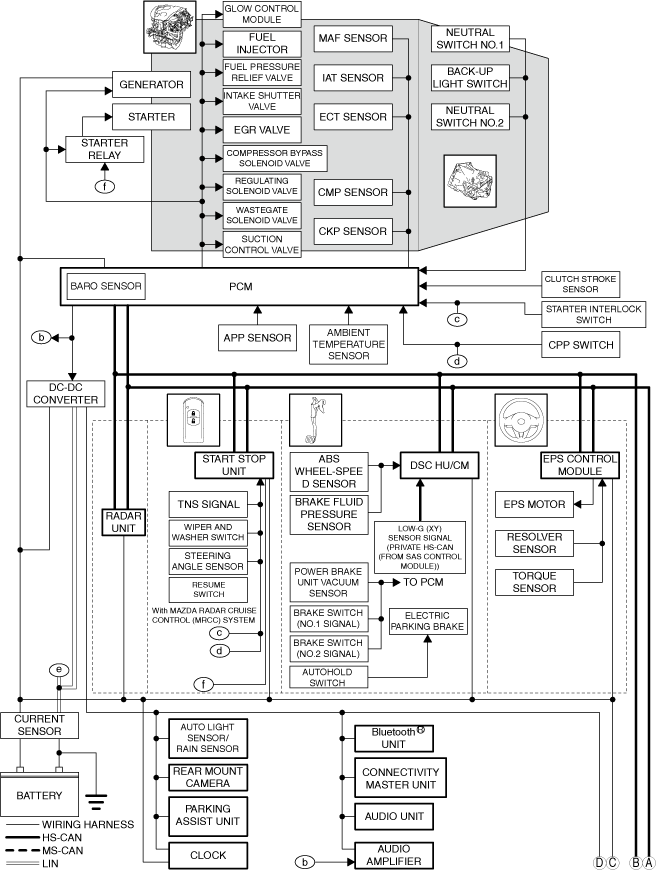

Without i-ELOOP (MTX)

ac5wzn00005656
ac5wzn00005653

With i-ELOOP (ATX)

ac5wzn00005657
ac5wzn00005653

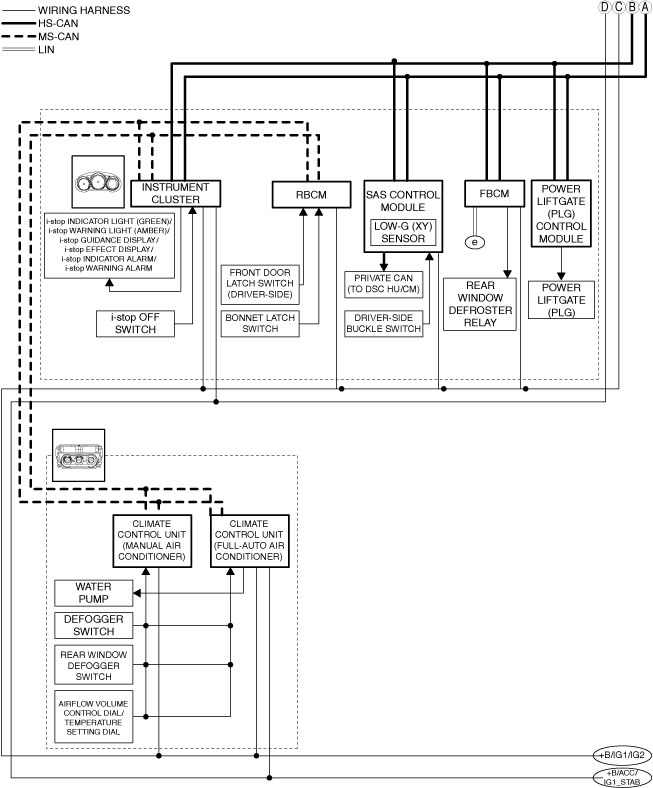

i-stop Control Modules

•  i-stop is controlled by the following modules. For details on each of the controls, refer to the control content for each module.

Module name

Reference
PCM
SKYACTIV-G 2.0, SKYACTIV-G 2.5, SKYACTIV-G 2.5T
(See i-stop CONTROL [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
(See i-stop CONTROL [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
(See i-stop CONTROL [SKYACTIV-G 2.5T].)
(See DC-DC CONVERTER CONTROL [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
(See DC-DC CONVERTER CONTROL [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
(See i-stop INDICATOR LIGHT (GREEN) [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
(See i-stop INDICATOR LIGHT (GREEN) [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
(See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-G 2.5T].)
(See i-stop WARNING LIGHT (AMBER) [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
(See i-stop WARNING LIGHT (AMBER) [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
(See i-stop WARNING LIGHT (AMBER) [SKYACTIV-G 2.5T].)
(See i-stop INDICATOR ALARM [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
(See i-stop INDICATOR ALARM [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
(See i-stop INDICATOR ALARM [SKYACTIV-G 2.5T].)
(See i-stop WARNING ALARM [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
(See i-stop WARNING ALARM [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
(See i-stop WARNING ALARM [SKYACTIV-G 2.5T].)
SKYACTIV-D 2.2
(See i-stop CONTROL [SKYACTIV-D 2.2].)
(See DC-DC CONVERTER CONTROL [SKYACTIV-D 2.2].)
(See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-D 2.2].)
(See i-stop WARNING LIGHT (AMBER) [SKYACTIV-D 2.2].)
(See i-stop INDICATOR ALARM [SKYACTIV-D 2.2].)
(See i-stop WARNING ALARM [SKYACTIV-D 2.2].)
DSC HU/CM
(See HILL LAUNCH ASSIST (HLA).)
TCM
(See ELECTRIC AT OIL PUMP [FW6A-EL, FW6AX-EL].)
(See ELECTRIC AT OIL PUMP [GW6A-EL, GW6AX-EL].)
Start stop unit
(See START STOP UNIT.)
EPS control module
(See ELECTRIC POWER STEERING (EPS) CONTROL MODULE.)
Climate control unit
(See CLIMATE CONTROL UNIT [FULL-AUTO AIR CONDITIONER].)
(See CLIMATE CONTROL UNIT [MANUAL AIR CONDITIONER].)
SAS control module
(See SAS CONTROL MODULE [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)
(See SAS CONTROL MODULE [STANDARD DEPLOYMENT CONTROL SYSTEM].)
Instrument cluster
(See INSTRUMENT CLUSTER.)
Front body control module (FBCM)
(See FRONT BODY CONTROL MODULE (FBCM).)
Rear body control module (RBCM)
(See REAR BODY CONTROL MODULE (RBCM).)
