CLIMATE CONTROL UNIT REMOVAL [MANUAL AIR CONDITIONER]

id0740a2801800

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2)  Console (See CONSOLE REMOVAL/INSTALLATION.)

(3)  Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(4)  Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)

(5)  Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION.)

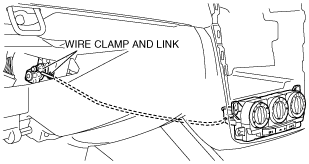

3.  Disconnect the air mix wire from wire clamp and link.

acxaaw00000604

4.  Remove the screws and climate control unit.

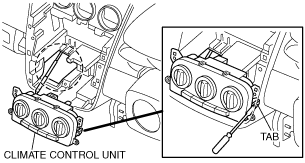

5.  Release the tab and pull the climate control unit toward you.

6.  Disconnect the climate control unit connectors and remove the climate control unit.
