FRONT DOOR REMOVAL/INSTALLATION

id091100800200

1.  Disconnect the negative battery cable.

2.  To remove the checker, remove the following parts:

(1)  Inner garnish (SeeINNER GARNISH REMOVAL/INSTALLATION)

(2)  Front door trim (SeeFRONT DOOR TRIM REMOVAL/INSTALLATION)

(3)  Front door speaker (SeeFRONT DOOR SPEAKER REMOVAL/INSTALLATION)

3.  To remove the front door hinges, remove the following parts:

(1)  Windshield wiper arm and blade (SeeWINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION)

(2)  Cowl grill (SeeCOWL GRILLE REMOVAL/INSTALLATION)

(3)  Front bumper (SeeFRONT BUMPER REMOVAL/INSTALLATION)

(4)  Head lights (SeeHEADLIGHT REMOVAL/INSTALLATION)

(5)  Side step molding (SeeSIDE STEP MOLDING REMOVAL)

(6)  Front fender panel (SeeFRONT FENDER PANEL REMOVAL/INSTALLATION)

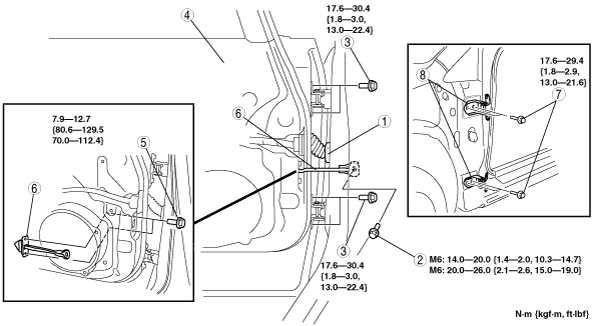

4.  Remove in the order indicated in the table.

acxaaw00000020

1	Connector (See Connector Removal Note.)
2	Bolt A
3	Bolt B
4	Front door
5	Bolt C
6	Checker
7	Bolt D
8	Front door hinge

5.  Install in the reverse order of removal.

6.  Adjust the front door. (See DOOR ADJUSTMENT.)

Connector Removal Note

1.  Pull down the cover in the direction of the arrow and disconnect the connector.

acxaaw00000021
