INTAKE-AIR SYSTEM [SKYACTIV-D 2.2]

id0113z7003300

Purpose, Outline

• With the adoption of the two-stage air charging system, efficient, high air-charging is obtained in all driving ranges. As a result, low emissions, low fuel consumption, high torque, and high response are realized.

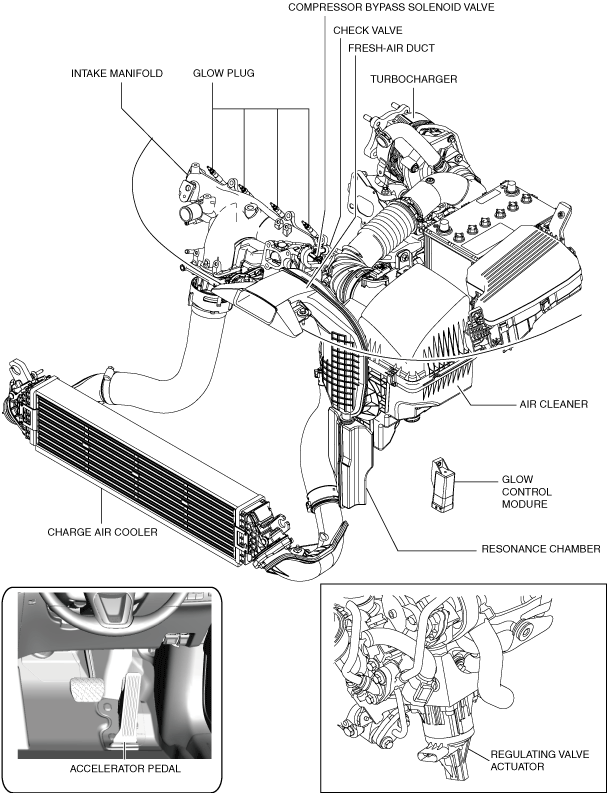

Structural View

ac8wzn00000132

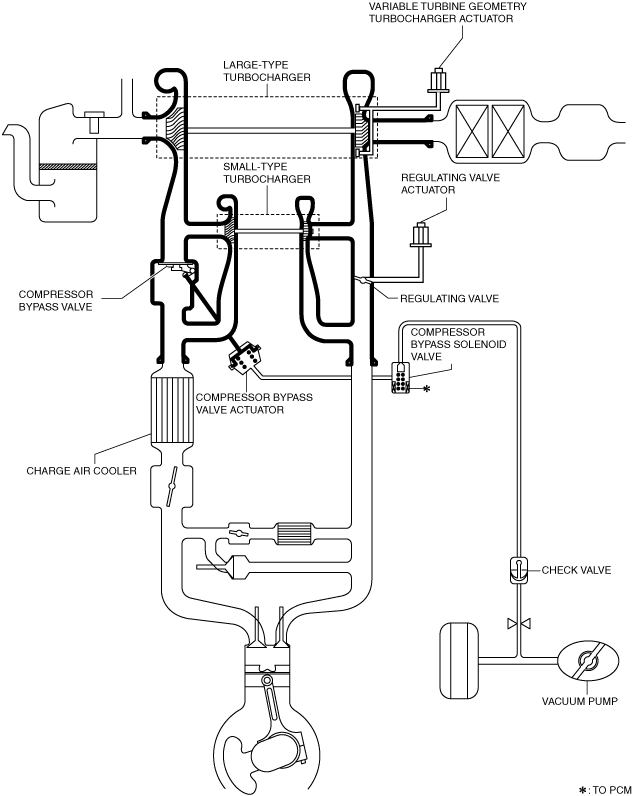

System Diagram

ac8wzn00000909

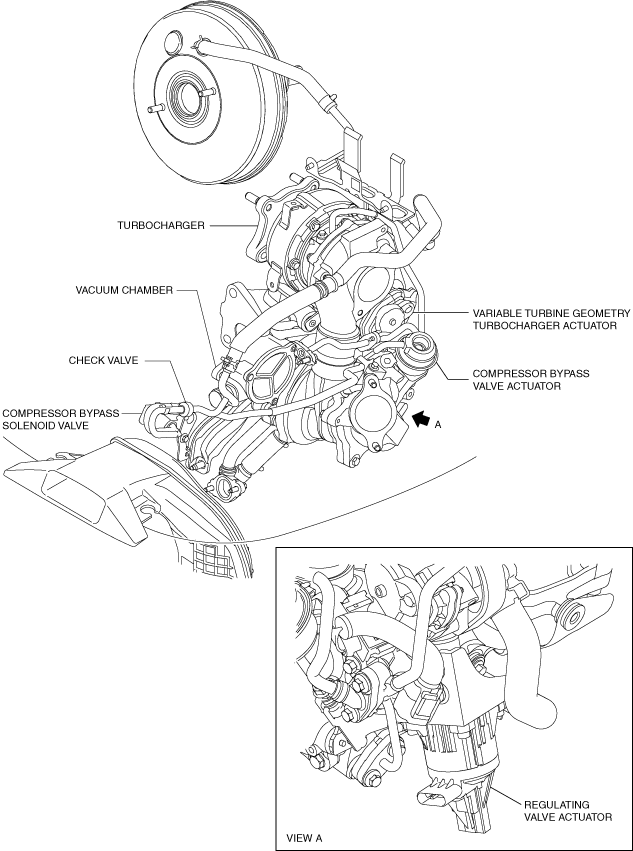

Vacuum Hose Routing Diagram

ac8wzw00002653

Structure

• The intake air system consists of the following parts:

Part/System name

Reference

Fresh-air duct

(See FRESH-AIR DUCT [SKYACTIV-D 2.2].)

Resonance chamber

(See RESONANCE CHAMBER [SKYACTIV-D 2.2].)

Air cleaner

(See AIR CLEANER [SKYACTIV-D 2.2].)

Intake manifold

(See INTAKE MANIFOLD [SKYACTIV-D 2.2].)

Air charging system

(See AIR CHARGING SYSTEM [SKYACTIV-D 2.2].)

Turbocharger

Compressor bypass valve actuator

(See TURBOCHARGER [SKYACTIV-D 2.2].)

(See REGULATING VALVE ACTUATOR POSITION SENSOR [SKYACTIV-D 2.2].)

Variable turbine geometry turbocharger actuator

Regulating valve actuator

Compressor bypass solenoid valve

(See COMPRESSOR BYPASS SOLENOID VALVE [SKYACTIV-D 2.2].)

Check valve

(See CHECK VALVE [SKYACTIV-D 2.2].)

Charge air cooler

(See CHARGE AIR COOLER [SKYACTIV-D 2.2].)

Glow system

(See GLOW SYSTEM [SKYACTIV-D 2.2].)

Glow plug

(See GLOW PLUG [SKYACTIV-D 2.2].)

Glow control module

(See GLOW CONTROL MODULE [SKYACTIV-D 2.2].)

Accelerator pedal

(See ACCELERATOR PEDAL, KICKDOWN SWITCH [SKYACTIV-D 2.2].)

Part/System name			Reference
Fresh-air duct			(See FRESH-AIR DUCT [SKYACTIV-D 2.2].)
Resonance chamber			(See RESONANCE CHAMBER [SKYACTIV-D 2.2].)
Air cleaner			(See AIR CLEANER [SKYACTIV-D 2.2].)
Intake manifold			(See INTAKE MANIFOLD [SKYACTIV-D 2.2].)
Air charging system (See AIR CHARGING SYSTEM [SKYACTIV-D 2.2].)	Turbocharger	Compressor bypass valve actuator	(See TURBOCHARGER [SKYACTIV-D 2.2].) (See REGULATING VALVE ACTUATOR POSITION SENSOR [SKYACTIV-D 2.2].)
		Variable turbine geometry turbocharger actuator
		Regulating valve actuator
	Compressor bypass solenoid valve		(See COMPRESSOR BYPASS SOLENOID VALVE [SKYACTIV-D 2.2].)
	Check valve		(See CHECK VALVE [SKYACTIV-D 2.2].)
	Charge air cooler		(See CHARGE AIR COOLER [SKYACTIV-D 2.2].)
Glow system (See GLOW SYSTEM [SKYACTIV-D 2.2].)		Glow plug	(See GLOW PLUG [SKYACTIV-D 2.2].)
Glow system (See GLOW SYSTEM [SKYACTIV-D 2.2].)		Glow control module	(See GLOW CONTROL MODULE [SKYACTIV-D 2.2].)
Accelerator pedal			(See ACCELERATOR PEDAL, KICKDOWN SWITCH [SKYACTIV-D 2.2].)
