STEERING SHAFT INSPECTION

id061300801600

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts.

(1)  Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(4)  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

(5)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(6)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

3.  Inspect the steering column bearing for looseness and damage.

•  If there is any malfunction, replace the steering column. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

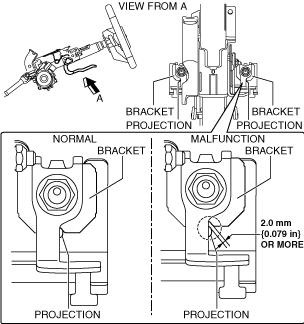

4.  Verify that the clearance between the projection on the steering column shown in the figure and the bracket is less than 2.0 mm {0.079 in}.

ac8wzw00001505

•  If the clearance between the projection and bracket is 2.0 mm {0.079 in} or more, replace the steering column component. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

Note

•  If the clearance between the projection and bracket is 2.0 mm {0.079 in} or more, the impact absorbing mechanism of the steering column will operate, therefore it is necessary to replace the steering column component.
