LOWER PANEL REMOVAL/INSTALLATION

id091700801100

Driver-side

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(4)  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

(5)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

3.  Partially peel back the seaming welt.

ac8wzw00001644

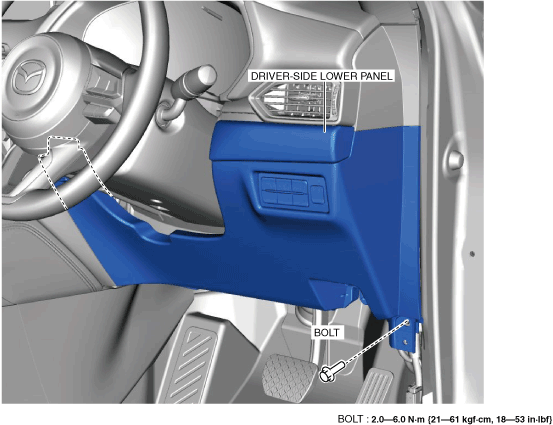

4.  Remove the bolt.

ac8wzw00001645

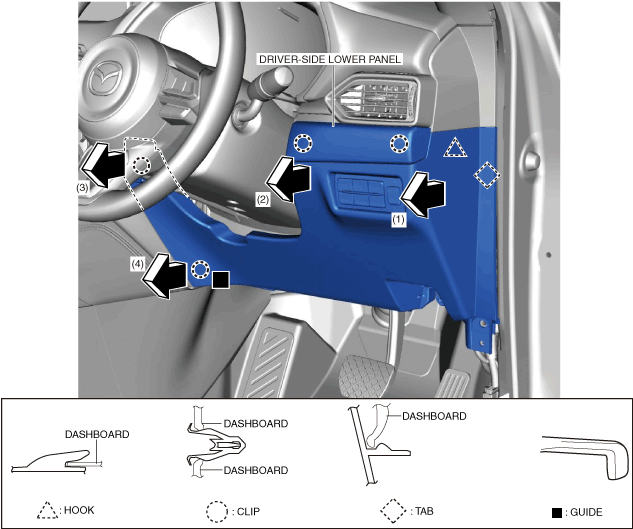

5.  Pull the driver-side lower panel in the order of arrows (1), (2), (3), and (4) shown in the figure, and remove it while detaching the clips, hook, tab, and guide.

R.H.D.

ac8wzw00001646

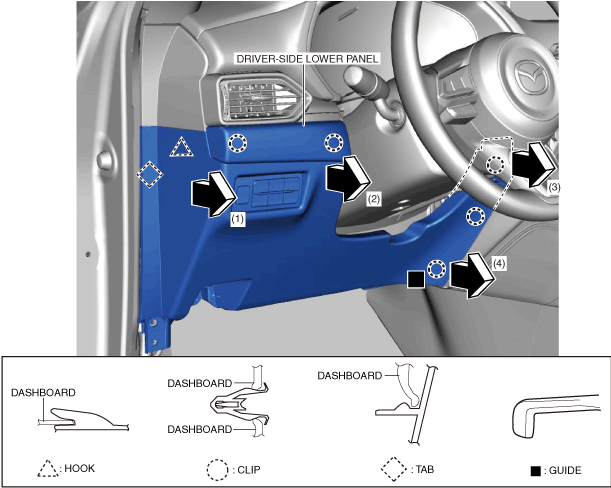

L.H.D.

ac8wzw00003477

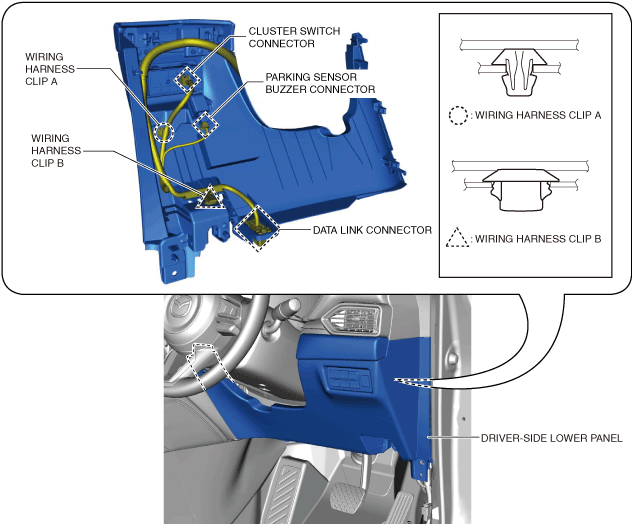

6.  Disconnect the cluster switch connector.

ac8wzw00001647

7.  Disconnect the parking sensor buzzer connector.

8.  Disconnect the foot light connector. (with foot light)

9.  Remove the data link connector.

10.  Remove wiring harness clips A and B.

Note

•  When replacing the driver-side lower panel, remove the following parts:

―  Cluster switch (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

―  Front parking sensor buzzer (See FRONT PARKING SENSOR BUZZER REMOVAL/INSTALLATION.)

―  Foot light (See FOOT LIGHT REMOVAL/INSTALLATION.)

11.  Install in the reverse order of removal.

Passenger-side

Removal

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(4)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(5)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

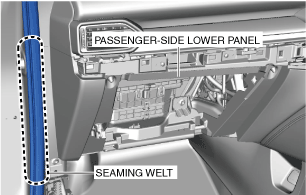

3.  Partially peel back the seaming welt.

ac8wzw00001648

4.  Remove the bolts.

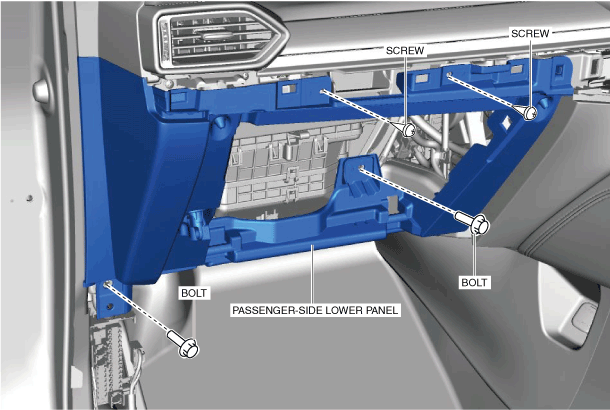

ac8wzw00001649

5.  Remove the screws.

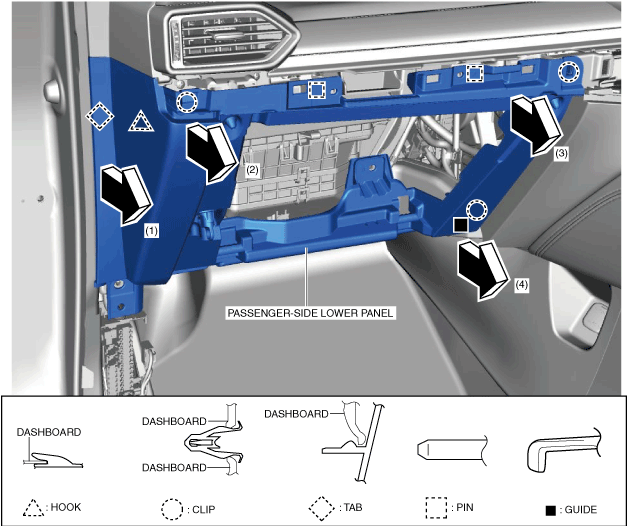

6.  Move the passenger-side lower panel in the order of arrows (1), (2), (3), and (4) shown in the figure, and remove it while detaching the hook, clips, pins, tab, and guide.

ac8wzw00001650

Installation

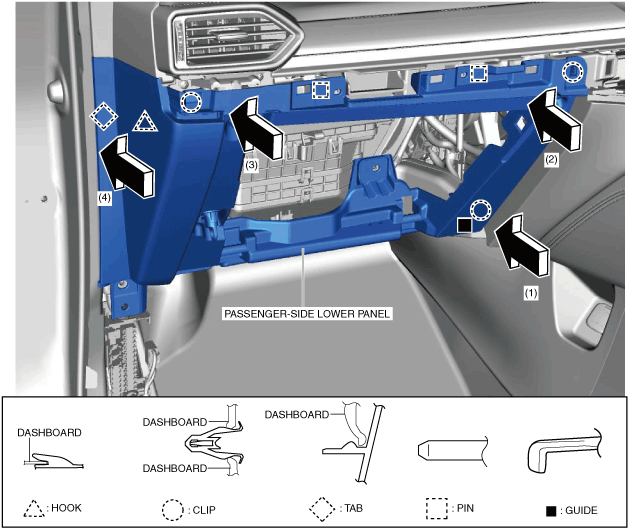

1.  Install the hook, clips, pins, tab, and guide while pressing the passenger-side lower panel in the order of arrows (1), (2), (3), and (4) shown in the figure.

ac8wzw00001651

2.  Assemble the passenger-side lower panel to the dashboard and tighten the bolts and screws temporarily.

ac8wzw00001649

3.  Install the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

4.  Measure the gap between the glove compartment and the passenger-side lower panel and verify that the measured value is within the standard.

•   If not within the standard, move the passenger-side lower panel and adjust the installation position.

ac8wzw00001652

5.  Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

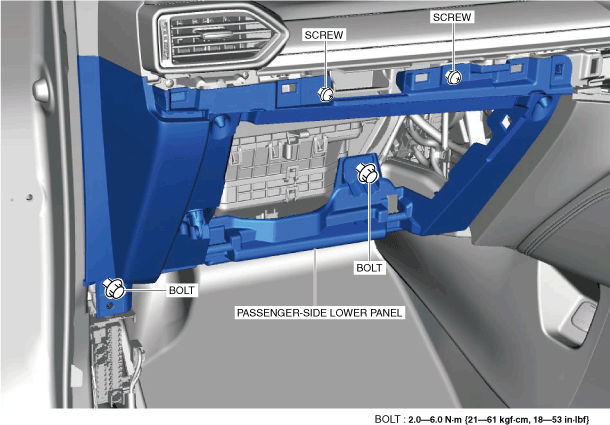

6.  Tighten the bolts and screws completely.

ac8wzw00002234

7.  Install the following parts:

(1)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(2)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(3)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(4)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(5)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

8.  Install the seaming welt.

ac8wzw00001648

9.  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
