CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION

id074000807800

L.H.D.

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the following parts:

(1) Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2) Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(6) Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

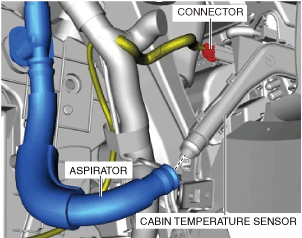

3. Disconnect the connector.

ac8wzw00003429

4. Disconnect the aspirator from the cabin temperature sensor.

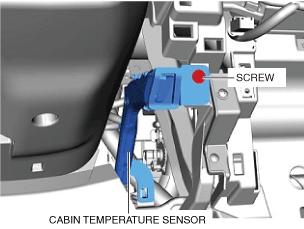

5. Remove the screw.

ac8wzw00003430

6. Remove the cabin temperature sensor.

ac8wzw00003431

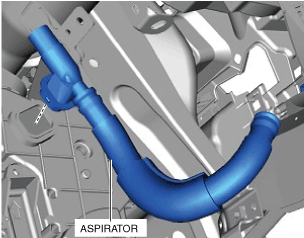

7. Remove the aspirator.

ac8wzw00003432

8. Install in the reverse order of removal.

R.H.D.

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the following parts:

(1) Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2) Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(6) Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

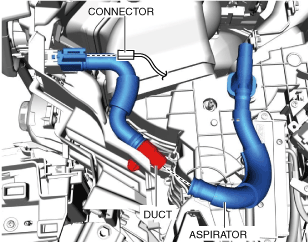

3. Disconnect the connector.

ac8wzw00000204

4. Disconnect the aspirator from the duct.

5. Remove the hose.

ac8wzw00000205

6. Remove the duct.

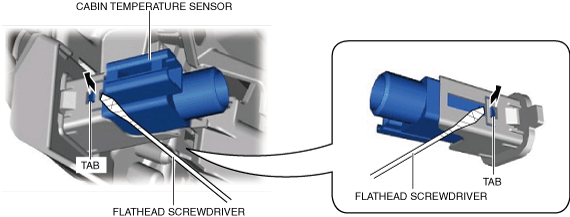

7. Lift up the location shown in the figure in the direction of the arrow and remove the tab using a tape-wrapped flathead screwdriver.

ac8wzw00000206

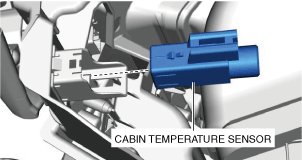

8. Remove the cabin temperature sensor.

ac8wzw00000207

9. Remove the aspirator.

ac8wzw00000208

10. Install in the reverse order of removal.
