AIR INTAKE ACTUATOR REMOVAL

id074000840100

L.H.D.

1.  Set the air intake mode to RECIRCULATE.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(3)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(5)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(6)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

4.  Disconnect the connector.

ac8wzw00003434

5.  Remove the screws.

6.  Remove the air intake actuator.

ac8wzw00003435

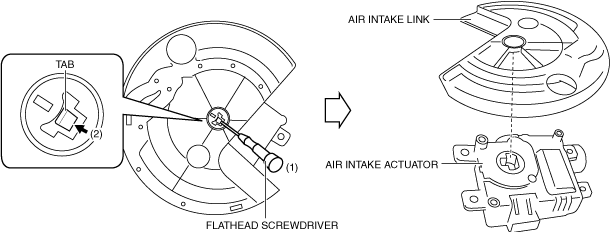

7.  Insert a flathead screwdriver in the position shown in the figure (1).

ac8wzw00003436

8.  Remove the air intake link while pressing the tab in the directions of arrow (2) shown in the figure.

R.H.D.

1.  Set the air intake mode to RECIRCULATE.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(3)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(5)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(6)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

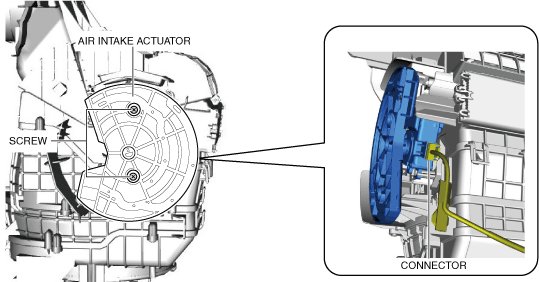

4.  Disconnect the connector.

ac9wzw00003731

5.  Remove the screws.

6.  Remove the air intake actuator.

ac9wzw00003732

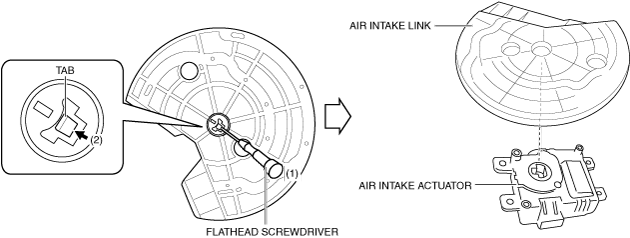

7.  Insert a flathead screwdriver in the position shown in the figure (1).

ac9wzw00003733

8.  Remove the air intake link while pressing the tab in the directions of arrow (2) shown in the figure.
