AIR INTAKE ACTUATOR INSTALLATION

id074000840200

L.H.D.

1. Install the air intake actuator.

ac8wzw00003437

2. Install the screws.

3. Connect the connector.

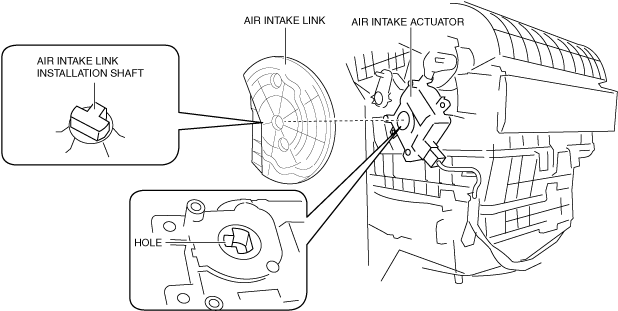

4. Align the air intake link installation shaft with the shape of the air intake actuator hole, and install the air intake link. (See Air intake link installation note.)

ac8wzw00003438

5. Install the following parts:

(1) Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(2) Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(3) Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(4) Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(5) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(6) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

6. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

Air intake link installation note

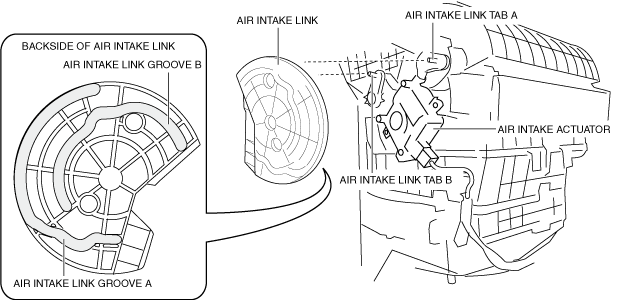

1. When installing the air intake link, verify that air intake link tab A is installed in air intake link groove A and air intake link tab B is installed in air intake link groove B.
