REAR BUMPER REINFORCEMENT REMOVAL/INSTALLATION

id091000800900

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

(2)  Rear splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION.)

(3)  Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION.)

3.  Remove the nuts.

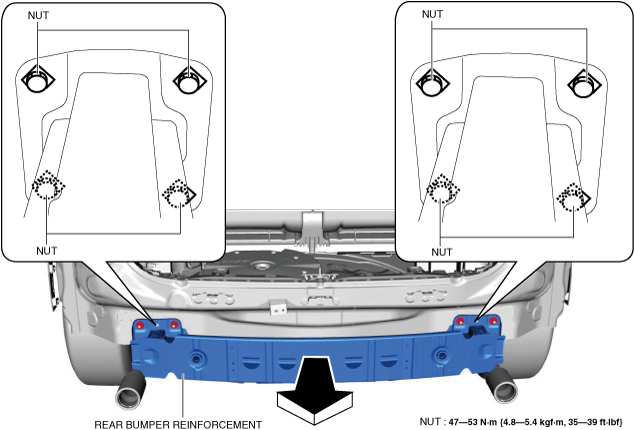

ac8wzw00000853

4.  Remove the rear bumper reinforcement in the direction of the arrow shown in the figure.

5.  Install in the reverse order of removal.
