BUMPER STIFFENER LOWER REMOVAL/INSTALLATION

id091000888900

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Seal board upper (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

(2)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)

(3)  Front under cover No.1 (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.)

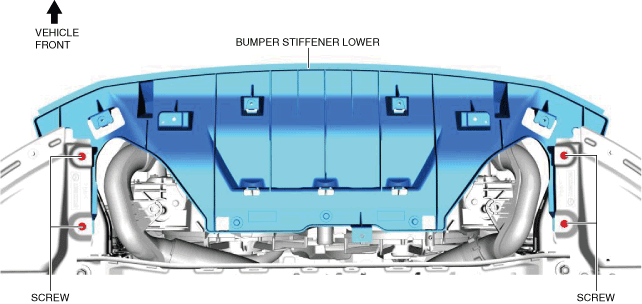

3.  Remove the screws.

ac8wzw00000890

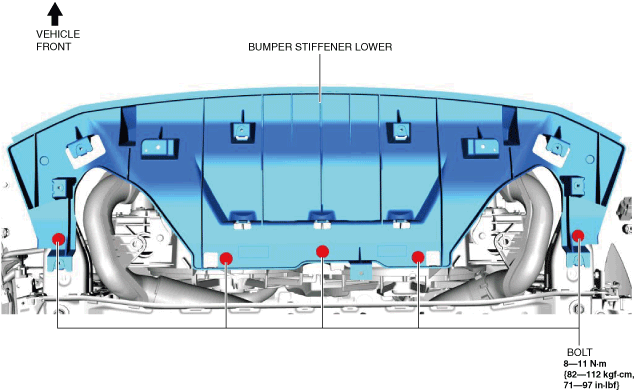

4.  Remove the bolts.

ac8wzw00000891

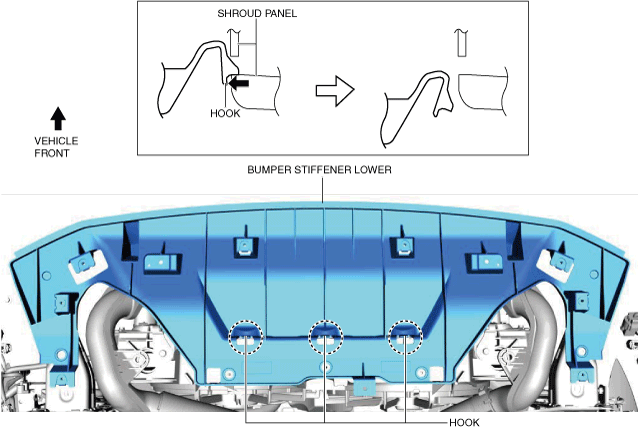

5.  Move the hooks in the direction of the arrow shown in the figure and detach the hooks from the shroud panel.

ac8wzw00000892

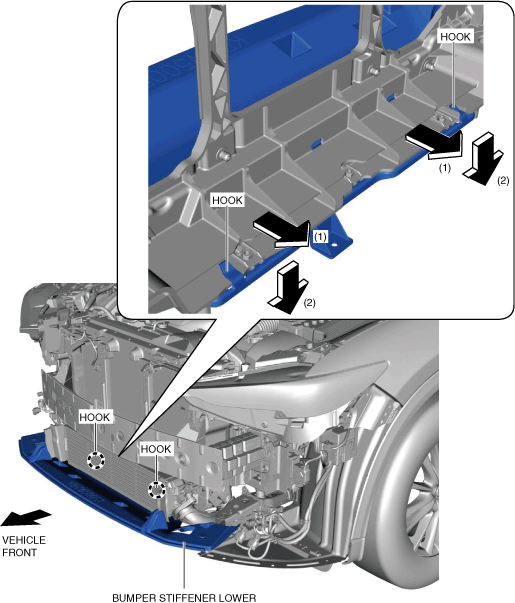

6.  Move the bumper stiffener lower in the directions of arrows (1) and (2) shown in the figure and detach the hooks.

ac8wzw00000893

7.  Remove the bumper stiffener lower.

8.  Install in the reverse order of removal.
