SHROUD UPPER MEMBER REMOVAL/INSTALLATION

id091000889800

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Seal board upper (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

(2)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)

(3)  Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

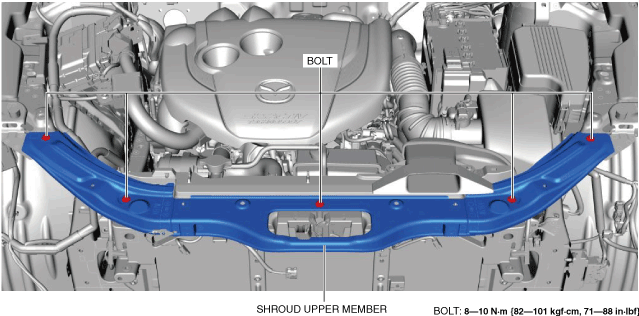

3.  Remove the bolts.

ac8wzw00000894

4.  Disconnect the connector.

ac8wzw00000895

5.  Remove the ground bolt.

6.  Remove the shroud upper member.

7.  When replacing the shroud upper member, remove the horn. (See HORN REMOVAL/INSTALLATION.)

8.  Install in the reverse order of removal.

9.  Perform the headlight aiming adjustment. (See HEADLIGHT AIMING.)
