POWER SEAT SWITCH INSPECTION

id091300801100

Warning

•  Handling a front seat equipped with a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the Workshop Manual before handling the front seat (side air bag integrated). (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)(See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

1.  Switch the ignition off (LOCK).

2.  Disconnect the negative battery terminal and wait for 1 min. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the front seat side cover. (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION.)

4.  Remove the power seat switch. (See POWER SEAT SWITCH REMOVAL/INSTALLATION.)

5.  Verify that the continuity between the power seat switch terminals is as indicated in the table.

•  If not as indicated in the table, replace the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

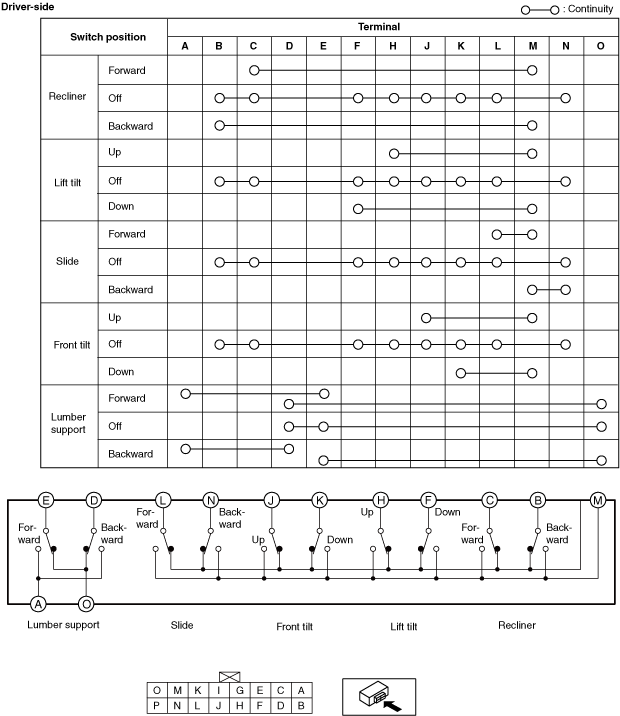

Driver-side with memory power seat

ac5ccw00001292

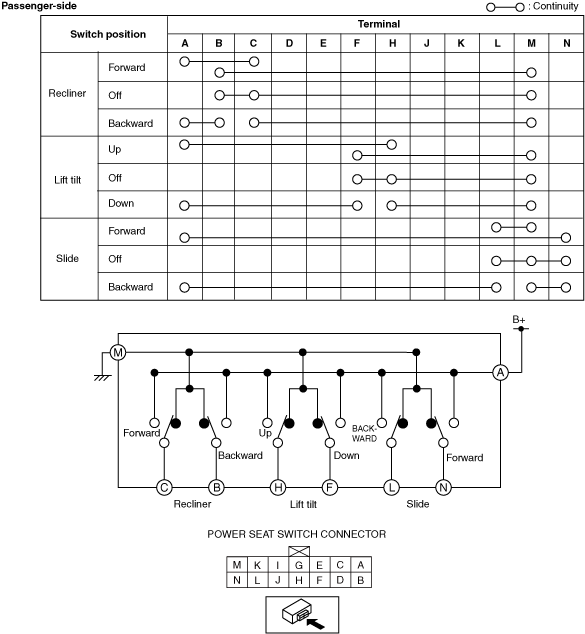

Passenger-side without memory power seat

ac5wzw00010276
