FRONT SASH MOLDING REMOVAL

id091600805000

Replacement part

1.  Remove the following parts:

(1)  Sail garnish. (See SAIL GARNISH REMOVAL/INSTALLATION.)

(2)  Front beltline molding. (See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION.)

(3)  Front door garnish. (See FRONT DOOR GARNISH REMOVAL/INSTALLATION.)

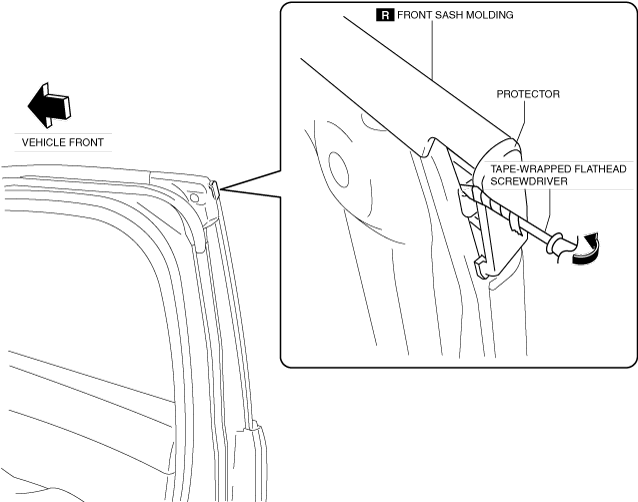

2.  Insert a tape-wrapped flathead screwdriver into the position shown in the figure, move it in the direction of the arrow, and then remove the protector.

ac8wzw00000809

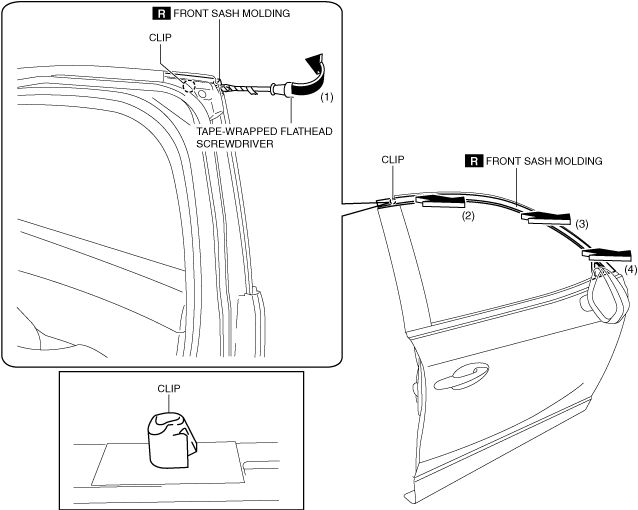

3.  Insert the tape-wrapped flathead screwdriver into the position shown in the figure, move it in the direction of arrow (1), and then detach the clip.

ac8wzw00000810

4.  Pull the front sash molding in the order of (2), (3), and (4) shown in the figure and remove it.
