FRONT SASH MOLDING INSTALLATION

id091600807000

Replacement part

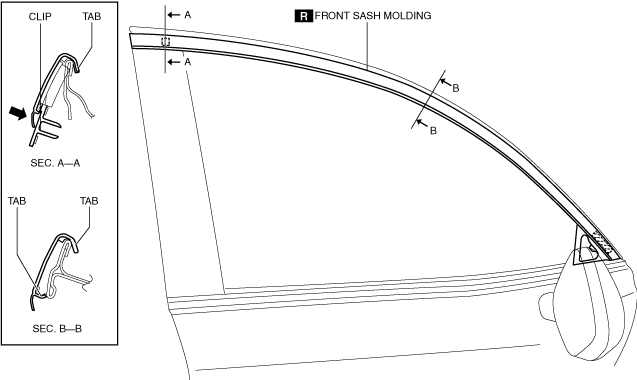

1.  After aligning the clip with the sash hole position, hook the tab to the vehicle body.

ac8wzw00003119

2.  Press the front sash molding in the direction of the arrow shown in the figure and install the clip to the body.

Caution

•  Do not apply force to the area other than the rubber area of the front sash molding.

3.  Hook the front sash molding tab starting from the vehicle front.

Note

•  After installing the front sash molding, verify that the tab is securely installed to the front door.

4.  Remove the following parts:

(1)  Front door garnish (See FRONT DOOR GARNISH REMOVAL/INSTALLATION.)

(2)  Front beltline molding (See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION.)

(3)  Sail garnish (See SAIL GARNISH REMOVAL/INSTALLATION.)
