SIDE SPOILER REMOVAL/INSTALLATION

id091600815000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

3.  Remove the rear spoiler. (See REAR SPOILER REMOVAL/INSTALLATION.)

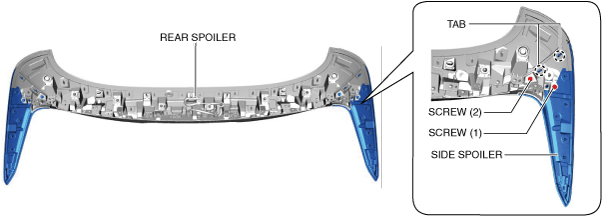

4.  Remove the screws in the order of (1) and (2).

ac8wzw00000830

5.  Detach the tabs.

6.  Remove the side spoiler.

7.  Install in the reverse order of removal.
