DASHBOARD DISASSEMBLY/ASSEMBLY

id091700800400

Warning

•  Handling the driver-side air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the SRS air bag system service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

1.  Remove the passenger-side air bag module. (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

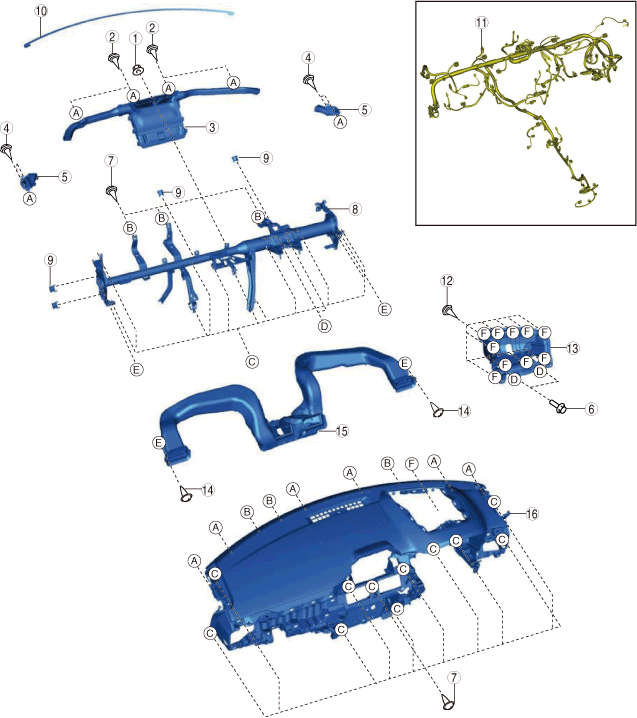

2.  Disassemble in the order shown in the figure.

ac8jjw00000894

1	Nut
2	Screw
3	Center defroster
4	Screw
5	Side defroster
6	Bolt
7	Screw
8	Dashboard frame
9	Member junction
10	Seal tape
11	Dashboard wiring harness (See Dashboard Wiring Harness Removal Note.)
12	Screw
13	Dashboard box
14	Screw
15	Center duct
16	Dashboard

3.  Assemble in the reverse order of disassembly.

Note

•  When replacing the dashboard, remove the following parts:

1.  Center speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

2.  Front center speaker (with Bose^®) (See FRONT CENTER SPEAKER REMOVAL/INSTALLATION.)

3.  GPS antenna (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION.)

4.  GPS antenna feeder (See GPS ANTENNA FEEDER REMOVAL/INSTALLATION.)

5.  Side ventilator grille (See VENTILATOR GRILLE REMOVAL/INSTALLATION.)

6.  Solar radiation sensor (See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION.)

7.  Parking assist unit (See PARKING ASSIST UNIT REMOVAL/INSTALLATION.)

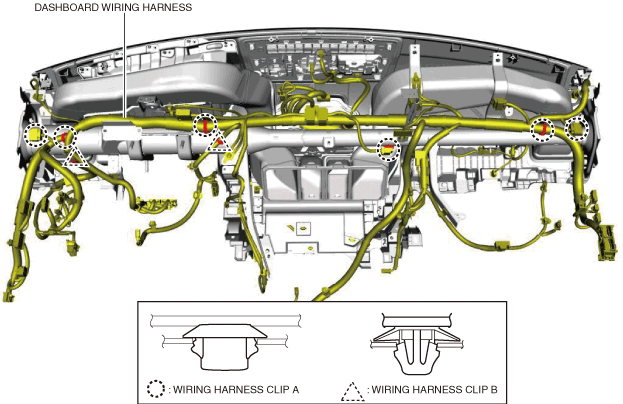

Dashboard Wiring Harness Removal Note

1.  The shape of the wiring harness clips at the positions shown in the figure cannot be visually verified. Refer to wiring harness clips A and B shown in the figure when removing the dashboard wiring harness.

ac8wzw00001632
