GPS ANTENNA FEEDER REMOVAL/INSTALLATION

id092000812100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(2)  Upper decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(3)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(4)  Meter hood No.1 (See METER HOOD REMOVAL/INSTALLATION.)

(5)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(6)  Center display component (See CENTER DISPLAY REMOVAL/INSTALLATION.)

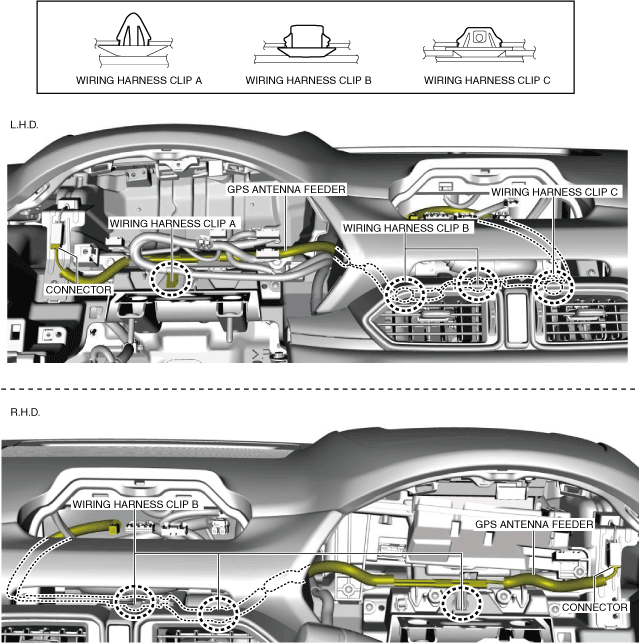

3.  Disconnect the connector.

ac8wzw00003491

4.  Remove the wiring harness clips A, B and C at the positions shown in the figure.

5.  Remove the GPS antenna feeder.

6.  Install in the reverse order of removal.
