REAR CONSOLE DISASSEMBLY/ASSEMBLY

id091700898600

Rear Console

1.  Disassemble in the order shown in the figure.

ac8jjw00001038

1	Screw
2	Mat box
3	Screw
4	Console lid (See CONSOLE LID REMOVAL/INSTALLATION.)
5	Screw
6	Side panel (See Side Panel Removal Note.)
7	Screw
8	Rear console bracket
9	Rear console box
10	Screw
11	Cup holder
12	Rear console
13	Screw
14	Pin (See CONSOLE LID REMOVAL/INSTALLATION.)
15	Console lid inner (See CONSOLE LID REMOVAL/INSTALLATION.)
16	Console lid outer (See CONSOLE LID REMOVAL/INSTALLATION.)

2.  Assemble in the reverse order of disassembly.

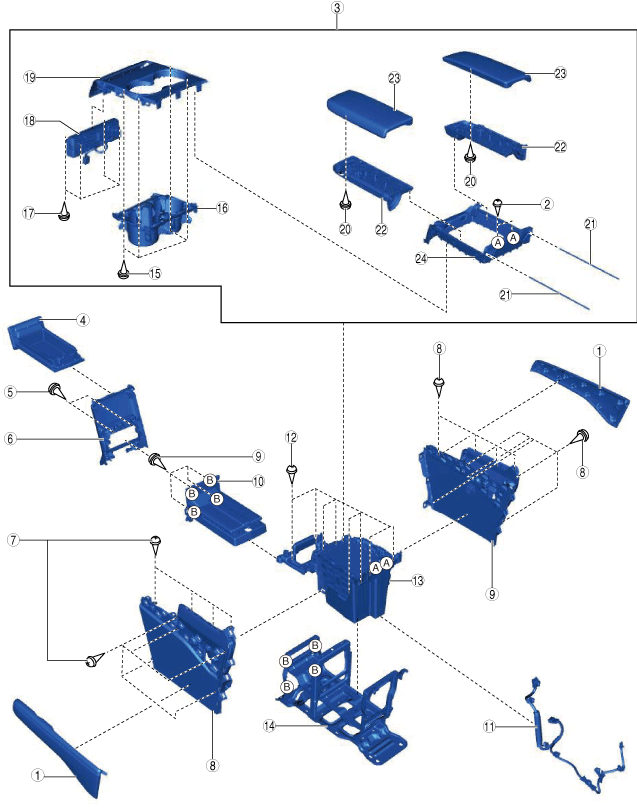

Second-row Seat Console Box (with second-row seat console box)

1.  Disassemble in the order shown in the figure.

ac8wzw00003485

1	Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)
2	Screw
3	Console lid (See CONSOLE LID REMOVAL/INSTALLATION.)
4	Storage box (See REAR CONSOLE REMOVAL/INSTALLATION.)
5	Screw
6	Lid stopper
7	Screw
8	Side panel (See Side Panel Removal Note.)
9	Screw
10	Cover
11	Short code
12	Screw
13	Rear console box
14	Rear console bracket
15	Screw
16	Cup holder
17	Screw
18	Second-row seat warmer switch (See SECOND-ROW SEAT WARMER SWITCH REMOVAL/INSTALLATION.)
19	Upper panel
20	Screw
21	Pin (See CONSOLE LID REMOVAL/INSTALLATION.)
22	Console lid inner (See CONSOLE LID REMOVAL/INSTALLATION.)
23	Console lid outer (See CONSOLE LID REMOVAL/INSTALLATION.)
24	Console-up

2.  Assemble in the reverse order of disassembly.

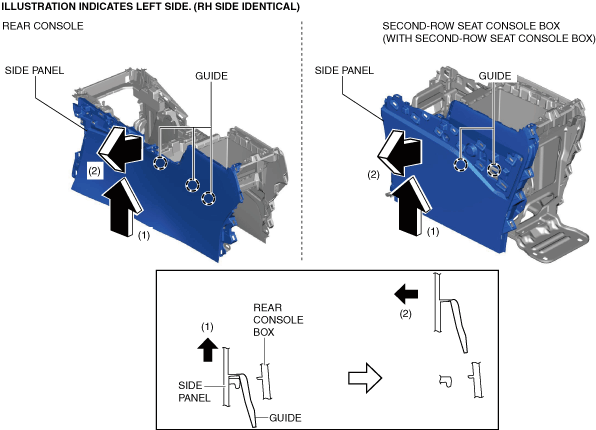

Side Panel Removal Note

1.  Move the side panel in the order of arrows (1) and (2) shown in the figure, and remove it while detaching the guides.

ac8wzw00003486
