FRONT FOG LIGHT REMOVAL/INSTALLATION

id091800802100

Type A

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Partially peel back the front under cover No.1. (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.)

3.  Partially peel back the front mudguard. (See MUDGUARD REMOVAL/INSTALLATION.)

4.  Disconnect the connectors.

ac8jjw00002254

5.  Remove the clips.

6.  Remove the screws.

ac8jjw00002255

Caution

•  When removing the front fog light from the front bumper, hold the front fog light on the lens side with a hand. Otherwise, it may fall off and be damaged.

7.  Remove the front fog light and the bracket as a single unit.

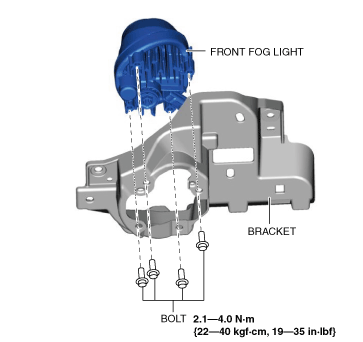

8.  Remove the bolts.

ac8wzw00002367

9.  Remove the front fog light from the bracket.

10.  Install in the reverse order of removal.

11.  Adjust the front fog light aiming. (See FRONT FOG LIGHT AIMING.)

Type B

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Partially peel back the front under cover No.1. (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.)

3.  Partially peel back the front mudguard. (See MUDGUARD REMOVAL/INSTALLATION.)

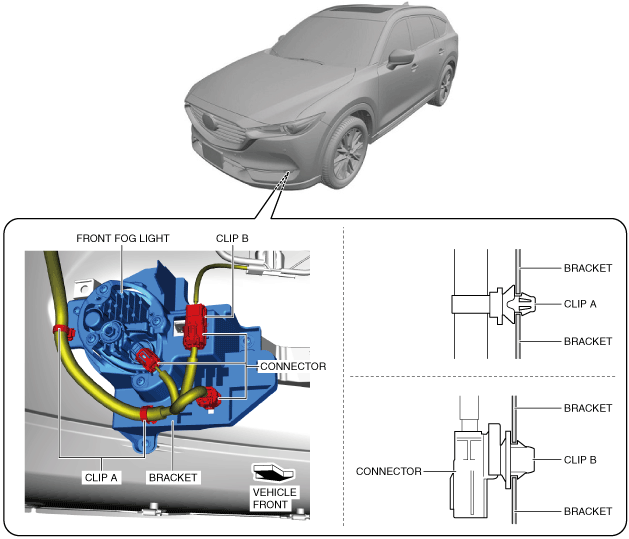

4.  Disconnect the connectors.

ac8ccw00000600

5.  Remove the clips.

6.  Remove the screws.

ac5uuw00005440

Caution

•  When removing the front fog light from the front bumper, the front fog light may fall off and be damaged. Remove the front fog light from the front bumper while holding the front fog light on the lens side by hand.

7.  Remove the front fog light and the bracket as a single unit.

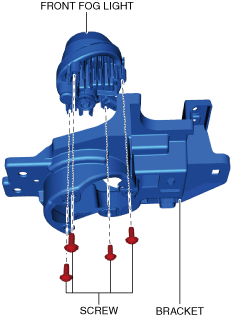

8.  Remove the screws.

ac5uuw00005441

9.  Remove the front fog light from the bracket.

10.  Install in the reverse order of removal.

11.  Adjust the front fog light aiming. (See FRONT FOG LIGHT AIMING.)
