DTC B10E7:12 [REAR POWER SEAT CONTROL MODULE (LH)]
id0902t2551300
Description |
Rear power seat control module (LH) IG1 power supply circuit malfunction |
---|---|
Detection condition
|
• Rear power seat control module (LH) detects a short to power supply in the IG1 power supply circuit with the ignition switched off.
|
Fail-safe
|
• Inhibits the rear power walk-in operation function from being driven.
|
Possible cause
|
• IG1 power supply circuit malfunction (Related DTCs are stored in the start stop unit)
• IG1 relay malfunction
• Rear power seat control module (LH) connector or terminal malfunction

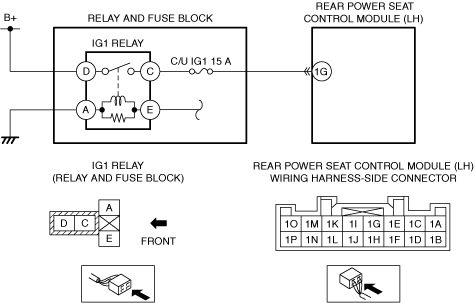

• Short to power supply in wiring harness between IG1 relay terminal C and rear power seat control module (LH) terminal 1G
• Rear power seat control module (LH) malfunction
|
![]() |
Diagnostic Procedure
Step |
Inspection |
Action |
|
---|---|---|---|
1
|
VERIFY START STOP UNIT DTCs
• Retrieve the start stop unit DTCs using the M-MDS.
• Are any DTCs displayed?
|
Yes
|
Repair or replace the malfunctioning part according to the applicable DTC troubleshooting.
(See DTC TABLE [START STOP UNIT].)
|
No
|
Go to the next step.
|
||
2
|
INSPECT IG1 RELAY
• Switch the ignition off.
• Disconnect the negative battery terminal.
• Remove the IG1 relay.
(See RELAY LOCATION.)
• Inspect the IG1 relay.
(See RELAY INSPECTION.)
• Is the part normal?
|
Yes
|
Go to the next step.
|
No
|
Replace the IG1 relay, then go to Step 6.
(See RELAY LOCATION.)
|
||
3
|
INSPECT REAR POWER SEAT CONTROL MODULE (LH) CONNECTOR CONDITION
• Disconnect the rear power seat control module (LH) connector.
• Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.
• Is the connector normal?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the connector and/or terminals, then go to Step 6.
|
||
4
|
INSPECT IG1 RELAY CIRCUIT FOR SHORT TO POWER SUPPLY
• Verify that the rear power seat control module (LH) connector is disconnected.
• Connect the negative battery terminal.
• Measure the voltage at the rear power seat control module (LH) terminal 1G (wiring harness-side).
• Is the voltage 0 V?
|
Yes
|
Go to the next step.
|
No
|
Refer to the wiring diagram and verify whether or not there is a common connector between IG1 relay terminal C and rear power seat control module (LH) terminal 1G.
If there is a common connector:
• Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to power supply.
• Repair or replace the malfunctioning part.
If there is no common connector:
• Repair or replace the wiring harness which has a short to power supply.
Go to Step 6.
|
||
5
|
INSPECT REAR POWER SEAT CONTROL MODULE (LH)
• Inspect the rear power seat control module (LH).
• Is the part normal?
|
Yes
|
Go to the next step.
|
No
|
Replace the second-row seat (LH), then go to the next step.
|
||
6
|
VERIFY THAT REPAIRS HAVE BEEN COMPLETED
• Reconnect all the disconnected connectors with the negative battery terminal disconnected.
• Connect the negative battery terminal.
• Clear the DTC for the rear power seat control module (LH) using the M-MDS.
• Retrieve the rear power seat control module (LH) DTCs using the M-MDS.
• Is the same Pending DTC present?
|
Yes
|
Repeat the inspection from Step 1.
• If the malfunction recurs, replace the second-row seat (LH).
Go to the next step.
|
No
|
Go to the next step.
|
||
7
|
VERIFY IF OTHER DTCs DISPLAYED
• Are any other DTCs displayed?
|
Yes
|
Repair or replace the malfunctioning part according to the applicable DTC troubleshooting.
|
No
|
DTC troubleshooting completed.
|
