FUEL SYSTEM [SKYACTIV-G 2.5T]

id0114q4002600


Outline

•  A multiple hole type fuel injector has been adopted to provide high fuel injection accuracy and improved fuel efficiency and output.
•  A high pressure fuel pump has been adopted to increase the fuel pressure and improve the vaporization characteristic of the fuel.

Structure


Structural view

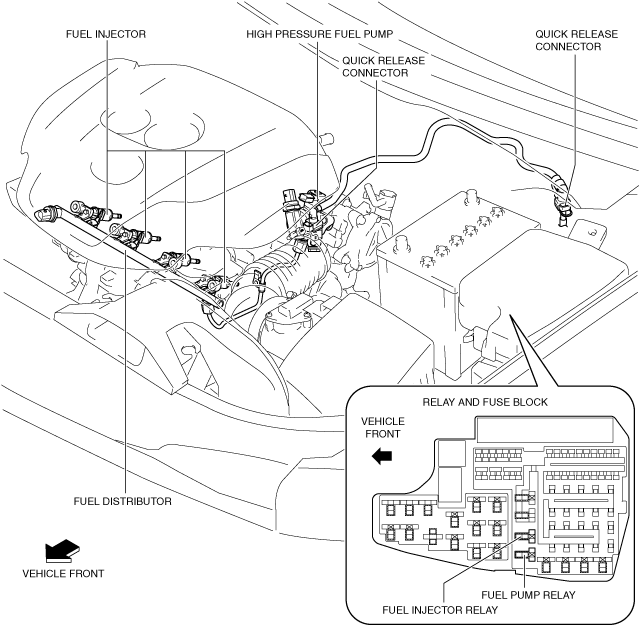

Engine compartment side

ac9uun00002887

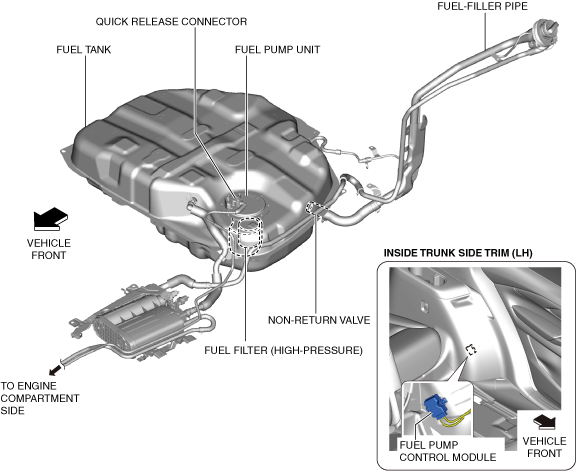

Fuel tank side (2WD): Taiwan

ac9uun00002888

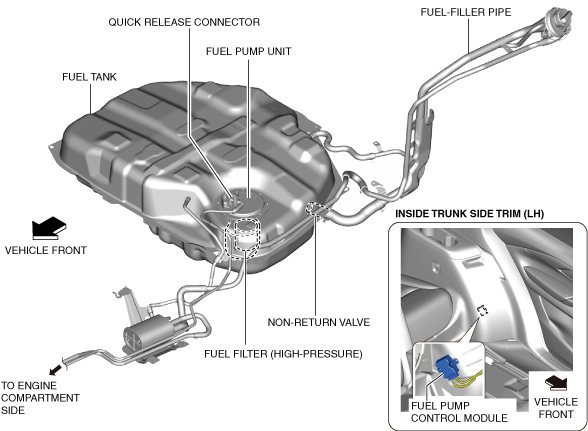

Fuel tank side (2WD): Except Taiwan

ac9wzn00002036

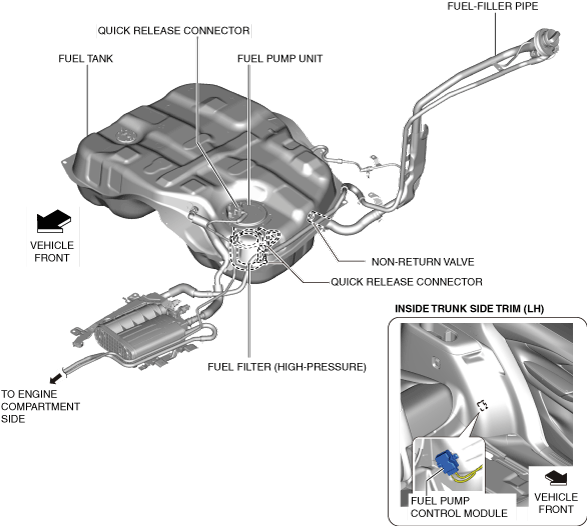

Fuel tank side (4WD): Taiwan

ac9uun00002889

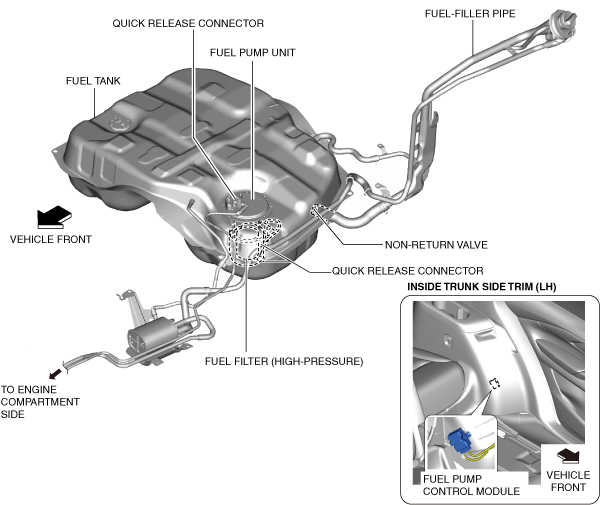

Fuel tank side (4WD): Except Taiwan

ac9wzn00002037

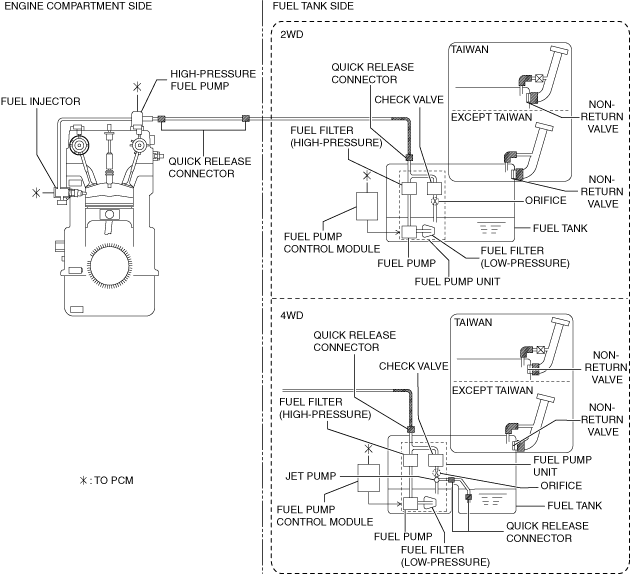

System diagram

ac9wzn00002098

•  The fuel system consists of the following parts:

Part/System name

Reference
Electronic returnless fuel system
(See ELECTRONIC RETURNLESS FUEL SYSTEM [SKYACTIV-G 2.5T].)
Fuel pump unit
(See FUEL PUMP UNIT [SKYACTIV-G 2.5T].)
Direct fuel injection system
(See DIRECT FUEL INJECTION SYSTEM [SKYACTIV-G 2.5T].)
High pressure fuel pump
(See HIGH PRESSURE FUEL PUMP [SKYACTIV-G 2.5T].)
Fuel distributor
(See FUEL DISTRIBUTOR [SKYACTIV-G 2.5T].)
Fuel injector
(See FUEL INJECTOR [SKYACTIV-G 2.5T].)
Fuel tank
(See FUEL TANK [SKYACTIV-G 2.5T].)
Non-return valve
(See NON-RETURN VALVE [SKYACTIV-G 2.5T].)
Fuel pump relay
(See FUEL PUMP RELAY [SKYACTIV-G 2.5T].)
Fuel injector relay
(See FUEL INJECTOR RELAY [SKYACTIV-G 2.5T].)
Fuel pump control module
(See FUEL PUMP CONTROL MODULE [SKYACTIV-G 2.5T].)
Quick release connector (fuel system)
(See QUICK RELEASE CONNECTOR (FUEL SYSTEM) [SKYACTIV-G 2.5T].)


Specification

Item

Specification
Fuel injector
Type
High resistance
Fuel supply method
Top-feed
Drive types
Electronic
Fuel pump unit discharge pressure
(kPa {kgf/cm2, psi})
Max. 700 {7.14, 102}
Fuel pump type
Electric
Fuel tank capacity
(L {US gal, Imp gal})
2WD: 72.0 {19.0, 15.8}
4WD: 74.0 {19.5, 16.3}


Fuel type

Fuel

Research Octane Number

Country
Premium unleaded fuel
95 or above
Kazakhstan, Armenia, Russia, Ukraine, Taiwan, Tahiti, New Caledonia, Vanuatu, UAE, Lebanon, Libya, Tunisia, Madagascar, Morocco, Guatemala, Bolivia, Uruguay, Honduras, Nicaragua, Aruba, Singapore, Hong Kong, Malaysia, Thailand, Brunei, Macau, Mauritius, Seychelles, Jamaica, Barbados, Grenada, ST. Lucia, ST. Vincent, Antigua, Surinam
Regular unleaded fuel (Conforming to Fuel Quality Standards Act 2000)*1
92 or above
Egypt, Myanmar
90 or above
Australia, New Zealand, Azerbaijan, Georgia, Belarus, Vietnam, The Philippines, Cambodia, Laos, Marshall Islands, USTT*2, Kuwait, Oman, Qatar, Saudi Arabia, Syria, Bahrain, Jordan, Iraq, Cameroon, Ivory Coast, Nigeria, Angola, Burundi, Gabon, Ghana, Chile, El Salvador, Costa Rica, Ecuador, Haiti, Colombia, Dominican Republic (LHD), Panama, Peru, B. Virgin, Curacao, St. Martin, Nepal, Fiji, Papua New Guinea, Kenya, Zimbabwe, Tanzania, Mozambique, Trinidad and Tobago, Commonwealth of Dominica

*1  :Australia
*2  :Republic of Palau & Federated States of Micronesia
