FUEL TANK [SKYACTIV-G 2.5T]

id0114q4104100


Purpose, Function

•  The fuel tank stores fuel safely.

Construction

•  The fuel tank is located at the rear of the vehicle.
•  The fuel tank is a saddle type because there is a propeller shaft. (4WD)

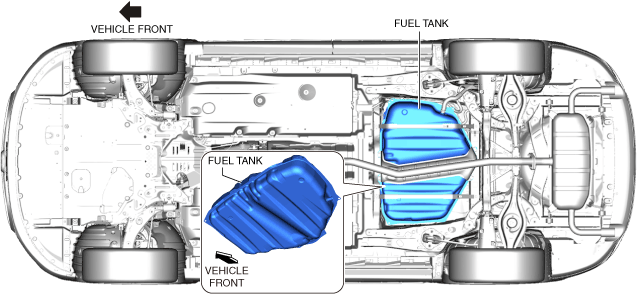

2WD

ac9uun00002911

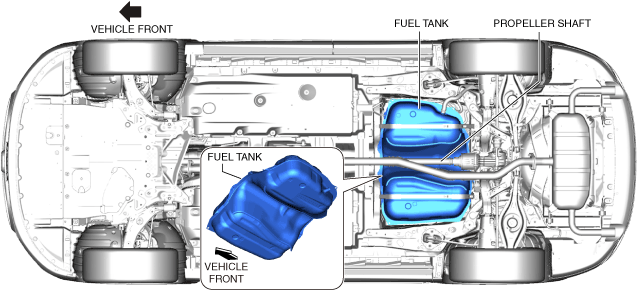

4WD

ac9uun00002912
•  The fuel tank is made of steel.
•  The following parts are integrated in the fuel tank.

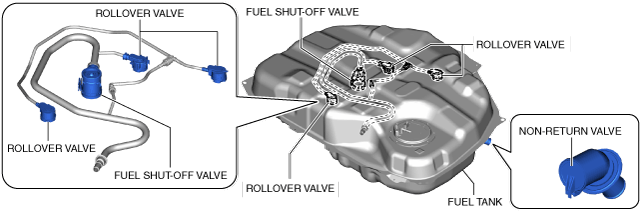

2WD: Taiwan

ac9wzn00002100

2WD: Except Taiwan

ac9uun00002777

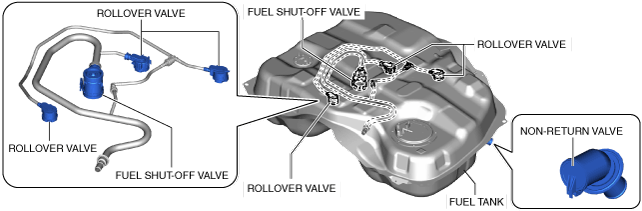

4WD: Taiwan

ac9wzn00002101

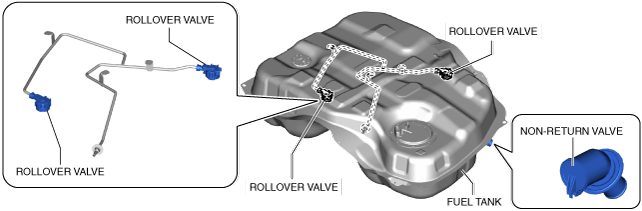

4WD: Except Taiwan

ac9uun00002778
―  Non-return valve
(See NON-RETURN VALVE [SKYACTIV-G 2.5T].)
―  Rollover valve
(See ROLLOVER VALVE [SKYACTIV-G 2.5T].)
―  Fuel shut-off valve (Taiwan)
(See FUEL SHUT-OFF VALVE [SKYACTIV-G 2.5T].)
