TRANSFER REMOVAL/INSTALLATION


id031600800600

1.  Disconnect the negative battery cable.

2.  Remove the front tire. (RH) (See GENERAL PROCEDURES (SUSPENSION).)

3.  Disconnect the rear HO2S (RH) connector (PCM connector (2 types)) or HO2S (RH) connector (PCM connector (3 types)). (See REAR HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [MZI-3.7 (PCM CONNECTOR (2 TYPES))].)(See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [MZI-3.7 (PCM CONNECTOR (3 TYPES))].)

4.  Remove the following parts:

(1)  Middle pipe (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZI-3.7].)
(2)  Front pipe (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZI-3.7].)
(3)  WU-TWC bracket (RH) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZI-3.7].)
(4)  WU-TWC (RH) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZI-3.7].)
(5)  Stabilizer control link (See FRONT CROSSMEMBER REMOVAL/INSTALLATION [L.H.D.].)(See FRONT CROSSMEMBER REMOVAL/INSTALLATION [R.H.D.].)
(6)  Front lower arm ball joint (RH) (See FRONT CROSSMEMBER REMOVAL/INSTALLATION [L.H.D.].)(See FRONT CROSSMEMBER REMOVAL/INSTALLATION [R.H.D.].)

5.  Disconnect the drive shaft (RH) from the joint shaft. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION.)

6.  Remove the joint shaft (See JOINT SHAFT REMOVAL/INSTALLATION [4WD].)

7.  Disconnect the propeller shaft from the transfer side. (See PROPELLER SHAFT REMOVAL/INSTALLATION.)

8.  Remove in the order indicated in the table.

9.  Install in the reverse order of removal.

10.  Warm up the engine and transaxle, inspect for oil leakage, and inspect the transfer operation.

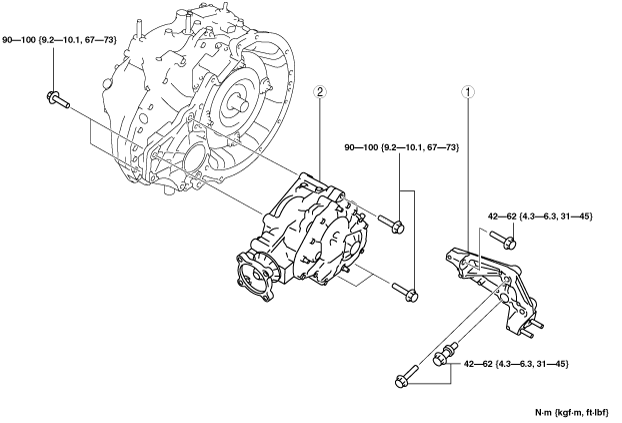

ac9uuw00003805

1
Transfer bracket
2
Transfer


Transfer Removal Note

1.  Disconnect the front stabilizer control link, and rotate the stabilizer to the front to secure a space from the side.

ac9uuw00003922

2.  Remove the No.1 engine mount bolt C.

ac9uuw00003923

3.  Remove the transfer installation bolts.

4.  Push the engine forward so that the front side of the transfer faces downward, then remove the transfer.

ac9uuw00003924


Transfer Installation Note

1.  Push the engine forward so that the front side of the transfer faces downward, then install the transfer.

ac9uuw00003925

2.  Install the transfer installation bolts.

Tightening torque
90—100 N·m {9.2—10.1 kgf·m, 67—73 ft·lbf}

3.  Tighten the No.1 engine mount bolt C at the specified torque.

ac9uuw00003923

Tightening torque
105—132 N·m {11—13 kgf·m, 78—97 ft·lbf}

4.  Rotate the front stabilizer to the rear to set it in its original position.

ac9uuw00003926


Transfer Bracket Installation Note

1.  Install the transfer bracket to the transfer, then temporarily tighten bolt C.

ac9uuw00003927

2.  Temporarily tighten bolt A and B.

3.  Tighten bolt A, B and C in the order of C→A→B.

Tightening torque
Bolt A, B, C: 42—62 N·m {4.3—6.3 kgf·m, 31—45 ft·lbf}

4.  Tighten bolt D.

Tightening torque
Bolt D: 42—62 N·m {4.3—6.3 kgf·m, 31—45 ft·lbf}
