DTC P0053, P0054, P0059, P0060 [MZI-3.7]


id0102d2880100

DTC P0053

DTC P0054

DTC P0059

DTC P0060

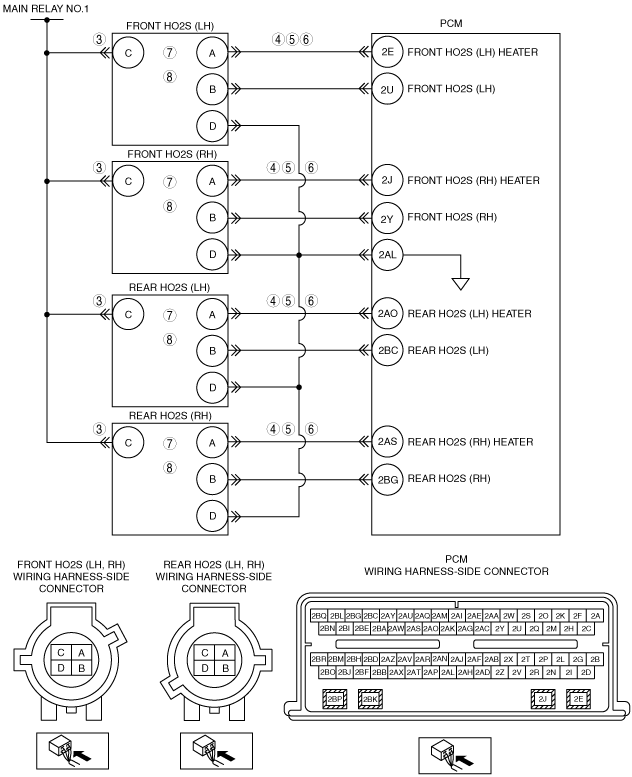

P0053: Front HO2S (RH) heater resistance

P0054: Rear HO2S (RH) heater resistance

P0059: Front HO2S (LH) heater resistance

P0060: Rear HO2S (LH) heater resistance

DETECTION CONDITION
•  Heater current requirements too low or high in the heated oxygen sensor (HO2S) heater control circuit.
POSSIBLE CAUSE
•  Open circuit between HO2S terminal C and main relay No.1 terminal E
•  Short to ground circuit between HO2S terminal A and body ground
•  HO2S circuits are shorted each other
•  DTC P0053: Open circuit between front HO2S (RH) terminal A and PCM terminal 2J
•  DTC P0054: Open circuit between rear HO2S (RH) terminal A and PCM terminal 2AS
•  DTC P0059: Open circuit between front HO2S (LH) terminal A and PCM terminal 2E
•  DTC P0060: Open circuit between rear HO2S (LH) terminal A and PCM terminal 2AO
•  HO2S heater malfunction
•  PCM malfunction

Diagnostic procedure

STEP

INSPECTION

ACTION

1
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
•  Has FREEZE FRAME DATA been recorded?
Yes
Go to the next step.
No
Record FREEZE FRAME DATA on the repair order, then go to the next step.
2
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
•  Verify related Service Information availability.
•  Is any related Service Information available?
Yes
Perform repair or diagnosis according to the available Service Information.
•  If the vehicle is not repaired, go to the next step.
No
Go to the next step.
3
INSPECT FOR POWER SUPPLY IN WIRING HARNESS
•  Disconnect the suspect HO2S connector.
•  Perform the KOEO self-test.
•  Measure the voltage between the suspect HO2S connector terminal A and C, on the wiring harness side.
•  Is the voltage more than 10 V?
Yes
Turn the ignition switch off. Go to the next step.
No
Repair or replace suspected part, then go to step 9.
4
INSPECT HO2S HEATER FOR SHORT TO GROUND
•  Disconnect the PCM.
•  Measure the resistance between HO2S connector terminal A, the wiring harness side, and body ground.
•  Is the resistance more than 10 kilohms?
Yes
Go to the next step.
No
Repair or replace suspected part. Go to Step 9
5
INSPECT HO2S HEATER FOR SHORT IN WIRING HARNESS
•  Measure the resistance between the following terminals:
―  HO2S terminal A (wiring harness-side) and HO2S terminal C (wiring harness-side)
―  HO2S terminal A (wiring harness-side) and HO2S terminal D (wiring harness-side)
―  HO2S terminal A (wiring harness-side) and HO2S terminal B (wiring harness-side)
•  Are the resistances more than 10 kilohms?
Yes
Go to the next step.
No
Repair or replace suspected part. Go to Step 9
6
INSPECT HO2S HEATER CIRCUIT FOR OPEN CIRCUIT IN WIRING HARNESS
•  For DTC P0053 Measure resistance between PCM terminal 2J and front HO2S (RH) terminal A.
•  For DTC P0054 Measure resistance between PCM terminal 2AS and rear HO2S (RH) terminal A.
•  For DTC P0059 Measure resistance between PCM terminal 2E and front HO2S (LH) terminal A.
•  For DTC P0060 Measure resistance between PCM terminal 2AO and rear HO2S (LH) terminal A.
•  Is the resistance less than 5.0 ohms?
Yes
Go to the next step.
No
Repair or replace suspected part. Go to Step 9.
7
INSPECT INTERNAL RESISTANCE OF HO2S HEATER
•  Measure the resistance between the suspect HO2S terminal A and C on the component side.
•  Is the resistance between 3—30 ohms?
Yes
Go to the next step.
No
Replace the HO2S.
Go to Step 9.
8
INSPECT HO2S CASE FOR SHORT TO POWER SUPPLY, HTR, AND SIGNRTN
•  Measure the resistance between the suspect HO2S terminal A and D on the component side.
•  Measure the resistance between the suspect HO2S terminal A and body ground.
•  Is the resistance more than 10 kilohms?
Yes
Replace the PCM. Go to the next step.
No
Replace the HO2S.
Go to the next step.
9
VERIFY TROUBLESHOOTING OF DTC P0053, P0054, P0059 or P0060 HAS BEEN COMPLETED
•  Verify that all disconnected connectors reconnected.
•  Turn the ignition switch to the ON position (Engine off).
•  Clear the DTC from the PCM memory using the M-MDS.
•  Start the engine and run it at idle.
•  Retrieve DTCs using the M-MDS.
•  Is the PENDING CODE for this DTC present?
Yes
Replace the PCM, then go to the next step.
No
Go to the next step.
10
VERIFY AFTER REPAIR PROCEDURE
•   Perform “AFTER REPAIR PROCEDURE”.
•   Are any DTC present?
Yes
Go to the applicable DTC inspection.
No
Troubleshooting completed.
