FUEL SYSTEM LOCATION INDEX [MZI-3.7]

id0114d2800100

Engine Compartment Side

ac9wzw00000180

1	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [MZI-3.7].) (See FUEL INJECTOR INSPECTION [MZI-3.7].)
2	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [MZI-3.7].)
3	Fuel pump relay (See RELAY INSPECTION.)

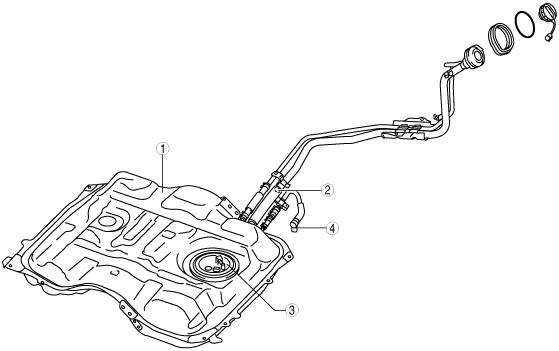

Fuel Tank Side

ac9wzw00000181

1	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION [MZI-3.7].) (See FUEL TANK INSPECTION [MZI-3.7].)
2	Nonreturn valve (See NONRETURN VALVE INSPECTION [MZI-3.7].)
3	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION [MZI-3.7].) (See FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY [MZI-3.7].) (See FUEL PUMP UNIT INSPECTION [MZI-3.7].)
4	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [MZI-3.7].)
