EMISSION SYSTEM LOCATION INDEX [MZI-3.7]

id0116d2803700

Engine Compartment Side

With PCV valve heater

ac9uuw00000136

1	Purge solenoid valve (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [MZI-3.7].) (See PURGE SOLENOID VALVE INSPECTION [MZI-3.7].)
2	PCV valve (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE REMOVAL/INSTALLATION [MZI-3.7].) (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION [MZI-3.7].)
3	PCV valve heater fitting (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE HEATER FITTING REMOVAL/INSTALLATION [MZI-3.7].) (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE HEATER FITTING INSPECTION [MZI-3.7].)
4	Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [MZI-3.7].)

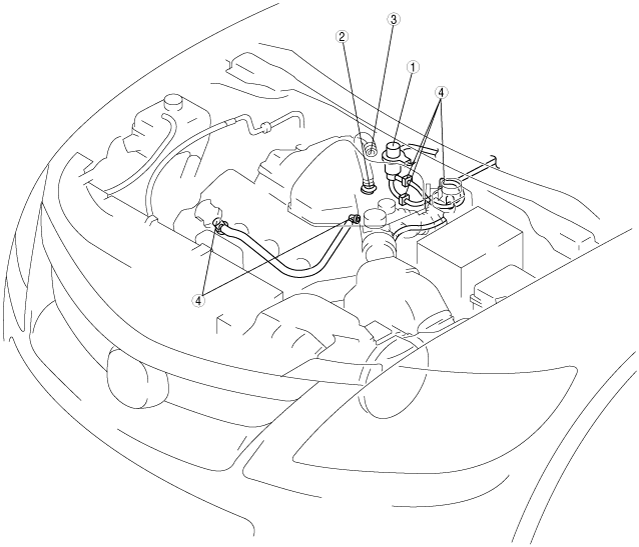

Without PCV valve heater

ac9wzw00000730

1	Purge solenoid valve (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [MZI-3.7].) (See PURGE SOLENOID VALVE INSPECTION [MZI-3.7].)
2	PCV valve (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE REMOVAL/INSTALLATION [MZI-3.7].) (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION [MZI-3.7].)
3	PCV fitting (See POSITIVE CRANKCASE VENTILATION (PCV) FITTING REMOVAL/INSTALLATION [MZI-3.7].) (See POSITIVE CRANKCASE VENTILATION (PCV) FITTING INSPECTION [MZI-3.7].)
4	Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [MZI-3.7].)

Exhaust System Side

ac9uuw00000179

1	WU-TWC (RH)
2	WU-TWC (LH)

Fuel Tank Side

ac9wzw00000186

1	Charcoal canister, CV solenoid valve, air filter component (See CHARCOAL CANISTER, CANISTER VENT (CV) SOLENOID VALVE, AIR FILTER COMPONENT REMOVAL/INSTALLATION [MZI-3.7].) (See CHARCOAL CANISTER, CANISTER VENT (CV) SOLENOID VALVE, AIR FILTER COMPONENT INSPECTION [MZI-3.7].)
2	Fuel-filler cap
3	Rollover valve (See ROLLOVER VALVE REMOVAL/INSTALLATION [MZI-3.7].) (See ROLLOVER VALVE INSPECTION [MZI-3.7].)
4	Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [MZI-3.7].)
