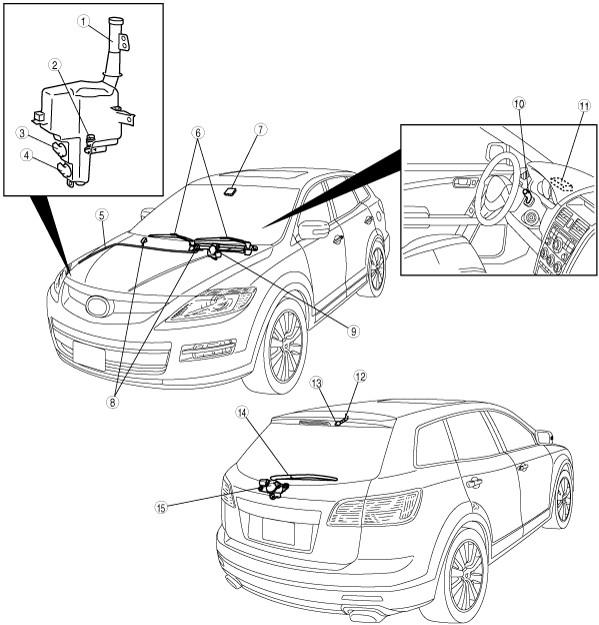

WIPER/WASHER SYSTEM LOCATION INDEX
id091900800100
ac9uuw00000688
|
1
|
Washer tank
|
2
|
Washer fluid-level sensor
|
3
|
Rear washer motor
(See REAR WASHER MOTOR INSPECTION.)
|
4
|
Windshield washer motor
|
5
|
Windshield washer hose
|
6
|
Windshield wiper arm and blade
|
7
|
Rain sensor
|
8
|
Windshield washer nozzle
|
9
|
Windshield wiper motor
|
10
|
Wiper and washer switch
|
11
|
Auto light/wiper control module
|
12
|
Rear washer hose
|
13
|
Rear washer nozzle
|
14
|
Rear wiper arm and blade
|
15
|
Rear wiper motor
(See REAR WIPER MOTOR INSPECTION.)
|
