INSTRUMENT CLUSTER STRUCTURAL VIEW
id092200101200

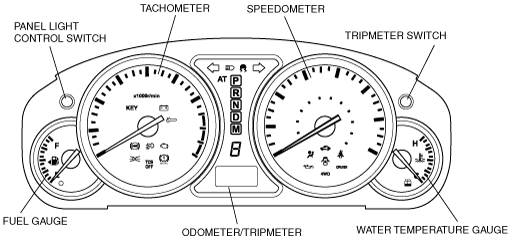

Meter and Gauge
ac9wzn00000060
|

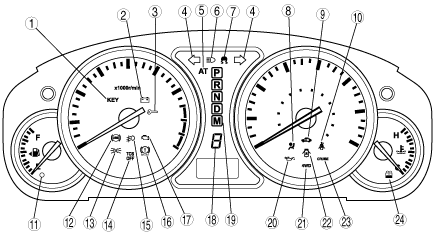

Warning and Indicator Light
ac9wzn00000061
|
No. |
Warning and indicator light |
Input signal source |
CAN system |
Description |
Note |
---|---|---|---|---|---|
1
|
Keyless indicator light (green)
|
Keyless control module
|
×
|
When the start knob can be turned (unlocked), the keyless indicator light (green) illuminates when the start knob is pressed in.
|
With advanced keyless system
|
Keyless warning light (red)
|
The keyless control module illuminates the keyless warning light (red) when the advanced keyless system has a malfunction.
|
||||
2
|
Generator warning light
|
PCM
|
×
|
Illuminates if the generator output is not normal.
|
—
|
3
|
Electronic throttle control (ETC) warning light
|
PCM
|
×
|
Illuminates if an abnormality occurs with the parts related to the electronic throttle body.
|
—
|
4
|
Turn indicator light
|
BCM
|
×
|
When the turn light illuminates, the turn indicator light illuminates.
|
—
|
5
|
AT warning light
|
TCM
|
×
|
The AT warning light illuminates to alert the driver of a malfunction in the automatic transaxle.
|
—
|
6
|
High-beam indicator light
|
Headlight (HI)
|
—
|
When the headlight (high-beam) illuminates, the high-beam indicator light illuminates.
|
—
|
7
|
DSC indicator light
|
DSC/RSC HU/CM
|
×
|
• If the DSC/RSC system is malfunctioning, the DSC indicator light remains illuminated.
• When the RSC or DSC or TCS is operating, the DSC indicator light flashes.
|
—
|
8
|
Air bag system warning light
|
SAS control module
|
×
|
SAS control module illuminates the air bag system warning light if the SRS air bag system has a malfunction.
(See ON-BOARD DIAGNOSTIC FUNCTION.)
|
—
|
9
|
Security light
|
• PCM (Without advanced keyless system)
• Keyless control module (With advanced keyless system)
|
×
|
The PCM (without advanced keyless system) or the keyless control module (with advanced keyless system) illuminates the security light if the immobilizer system has a malfunction.
|
—
|
10
|
Seat belt warning light
|
SAS control module
|
×
|
When the driver′s seat belt is not fastened, the seat belt warning light illuminates.
|
—
|
11
|
Fuel-level warning light
|
Fuel gauge sender unit
|
—
|
When the remaining fuel amount in the fuel tank is low, the fuel-level warning light illuminates.
|
—
|
12
|
ABS warning light
|
DSC/RSC HU/CM
|
×
|
If the DSC/RSC system is malfunctioning, the ABS warning light remains illuminated.
|
—
|
13
|
TNS indicator light
|
TNS relay
|
—
|
When the TNS illuminates, the TNS indicator light illuminates.
|
—
|
14
|
TCS OFF light
|
DSC/RSC HU/CM
|
×
|
• If the DSC/RSC system is malfunctioning, the TCS OFF light remains illuminated.
• When the TCS OFF switch is pressed to disable, the TCS OFF light illuminates.
|
—
|
15
|
Front fog indicator light
|
Front fog light relay
|
—
|
When the front fog light illuminates, the front fog light indicator light illuminates.
|
—
|
16
|
Brake system warning light
|
DSC/RSC HU/CM
|
×
|
If the DSC/RSC system is malfunctioning, the brake system warning light remains illuminated.
|
—
|
BCM
|
×
|
• When the brake fluid-level is low, the brake system warning light illuminates.
• When the parking brake is operating, the brake system warning light illuminates.
|
—
|
||
17
|
MIL
|
PCM
|
×
|
Illuminates if a malfunction occurs in the engine control system and automatic transaxle control system.
|
—
|
18
|
Gear position indicator light
|
TCM
|
×
|
Displays the gear position when in the M range.
|
—
|
19
|
Selector indicator light
|
TCM
|
×
|
Displays the selector lever position.
|
—
|
20
|
Oil pressure warning light
|
BCM
|
×
|
Illuminates if the oil pressure is low.
|
—
|
21
|
4WD warning light
|
4WD control module
|
×
|
If the 4WD system is malfunctioning, the 4WD warning light remains illuminated. If the 4WD system control is temporarily suspended due to the rear differential oil temperature becoming abnormally hot or a related cause, the warning light flashes.
|
—
|
22
|
Door ajar warning light
|
BCM
|
×
|
When any door or the liftgate is open, the door ajar warning light illuminates.
|
—
|
23
|
Cruise main indicator light (amber)
|
PCM
|
×
|
Illuminates if the cruise control system is in control status.
|
With cruise control system
|
Cruise set indicator light (green)
|
|||||
24
|
Washer fluid level warning light
|
BCM
|
×
|
When the washer fluid-level is low, the washer fluid level warning light illuminates.
|
—
|
