INTERIOR TRIM LOCATION INDEX

id091700805300

L.H.D.

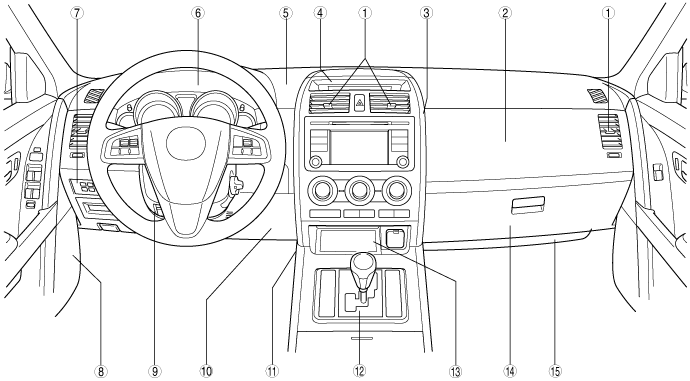

ac9wzw00002883

1	Ventilator grille (See VENTILATOR GRILLE REMOVAL/INSTALLATION.)
2	Dashboard garnish (See DASHBOARD GARNISH REMOVAL/INSTALLATION.)
3	Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
4	Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)
5	Dashboard (See DASHBOARD REMOVAL/INSTALLATION.) (See DASHBOARD DISASSEMBLY/ASSEMBLY.)
6	Meter hood (See METER HOOD REMOVAL/INSTALLATION.)
7	Cluster switch (See CLUSTER SWITCH REMOVAL/INSTALLATION.)
8	Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
9	Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)
10	Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
11	Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION.)
12	Indicator panel (See INDICATOR PANEL REMOVAL/INSTALLATION.)
13	Front console box (See FRONT CONSOLE BOX MAT REMOVAL/INSTALLATION.) (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
14	Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
15	Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

ac9wzw00002884

1	Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
2	Floor covering (See FLOOR COVERING REMOVAL/INSTALLATION.)
3	Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
4	B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
5	Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
6	Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
7	D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)
8	Headliner (See HEADLINER REMOVAL/INSTALLATION.)
9	Roof side trim (See ROOF SIDE TRIM REMOVAL/INSTALLATION.)
10	C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
11	Inner sail garnish (See INNER SAIL GARNISH REMOVAL/INSTALLATION.)
12	Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
13	Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.) (See REAR DOOR TRIM DISASSEMBLY/ASSEMBLY.)
14	B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
15	Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.) (See FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY.)
16	A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
17	Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)
18	Console cover (See CONSOLE COVER REMOVAL/INSTALLATION.)
19	Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
20	Side panel (See SIDE PANEL REMOVAL/INSTALLATION.)
21	Console (See CONSOLE REMOVAL/INSTALLATION.) (See CONSOLE DISASSEMBLY/ASSEMBLY.)
22	Intruder sensor cover (See INTRUDER SENSOR COVER REMOVAL/INSTALLATION.)

R.H.D.

ac9wzw00002885

1	Ventilator grille (See VENTILATOR GRILLE REMOVAL/INSTALLATION.)
2	Dashboard garnish (See DASHBOARD GARNISH REMOVAL/INSTALLATION.)
3	Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
4	Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)
5	Dashboard (See DASHBOARD REMOVAL/INSTALLATION.) (See DASHBOARD DISASSEMBLY/ASSEMBLY.)
6	Meter hood (See METER HOOD REMOVAL/INSTALLATION.)
7	Cluster switch (See CLUSTER SWITCH REMOVAL/INSTALLATION.)
8	Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
9	Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)
10	Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
11	Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION.)
12	Indicator panel (See INDICATOR PANEL REMOVAL/INSTALLATION.)
13	Front console box (See FRONT CONSOLE BOX MAT REMOVAL/INSTALLATION.) (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
14	Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
15	Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

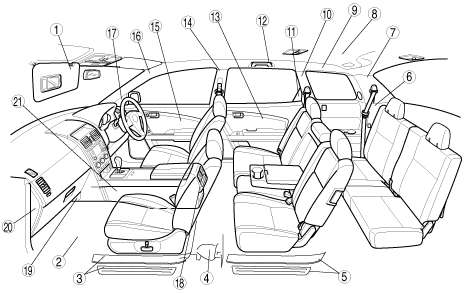

ac9wzw00002886

1	Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
2	Floor covering (See FLOOR COVERING REMOVAL/INSTALLATION.)
3	Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
4	B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
5	Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
6	Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
7	D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)
8	Headliner (See HEADLINER REMOVAL/INSTALLATION.)
9	Roof side trim (See ROOF SIDE TRIM REMOVAL/INSTALLATION.)
10	C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
11	Inner sail garnish (See INNER SAIL GARNISH REMOVAL/INSTALLATION.)
12	Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
13	Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.) (See REAR DOOR TRIM DISASSEMBLY/ASSEMBLY.)
14	B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
15	Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.) (See FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY.)
16	A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
17	Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)
18	Console cover (See CONSOLE COVER REMOVAL/INSTALLATION.)
19	Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
20	Side panel (See SIDE PANEL REMOVAL/INSTALLATION.)
21	Console (See CONSOLE REMOVAL/INSTALLATION.) (See CONSOLE DISASSEMBLY/ASSEMBLY.)

ac9uuw00000749

1	Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)
2	Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)
3	Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)
4	Seat side box (See SEAT SIDE BOX REMOVAL/INSTALLATION.)
5	Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
6	Trunk box (See TRUNK BOX REMOVAL/INSTALLATION.)
