AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

id0740a1703700

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front bumper.(See FRONT BUMPER REMOVAL/INSTALLATION [(E)].)

3.  Disconnect the connectors.

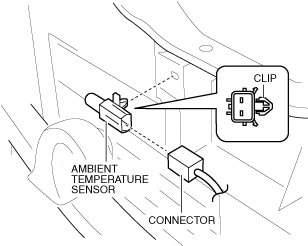

a30zzw00002855

4.  Remove the ambient temperature sensor.

5.  Install in the reverse order of removal.

6.  Perform the 360°view monitor system aiming. (with 360°view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)

7.  Perform the front radar sensor/front side radar sensor aiming. (With front side radar sensor) (See FRONT RADAR SENSOR/FRONT SIDE RADAR SENSOR AIMING.)

8.  Perform the front radar sensor aiming. (Without front side radar sensor) (See FRONT RADAR SENSOR AIMING.)
