INTAKE AIR GUIDE REMOVAL/INSTALLATION

id091000041200

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front bumper.(See FRONT BUMPER REMOVAL/INSTALLATION [(E)].)

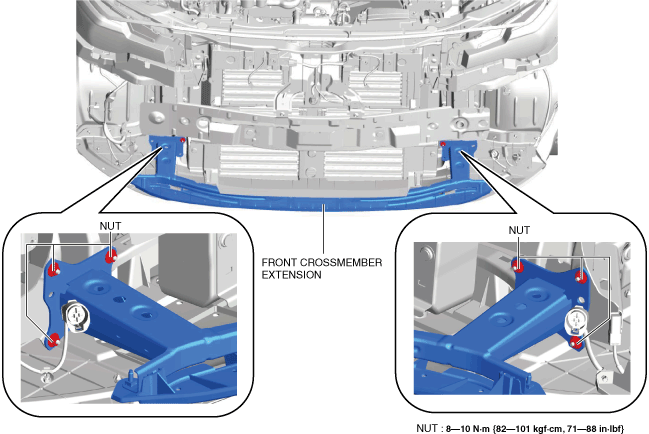

3.  Remove the nuts.

a30zzw00000462

4.  Remove the front crossmember extension and bumper stiffener lower as a single unit.

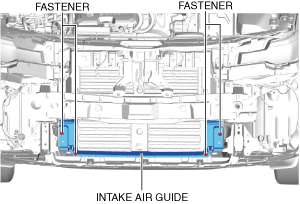

5.  Remove the fasteners.

a30zzw00000463

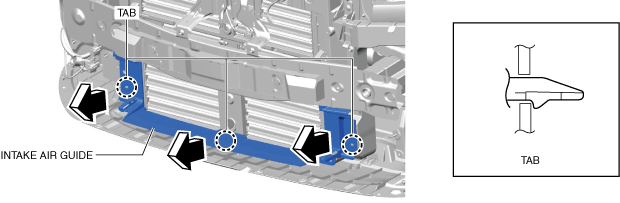

6.  Move the intake air guide in the direction of the arrow shown in the figure, and remove it while detaching the tabs.

a30zzw00000464

7.  Install in the reverse order of removal.

8.  Perform the 360°view monitor system aiming. (With 360°view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)

9.  Perform the front radar sensor/front side radar sensor aiming. (With front side radar sensor) (See FRONT RADAR SENSOR/FRONT SIDE RADAR SENSOR AIMING.)

10.  Perform the front radar sensor aiming. (Without front side radar sensor) (See FRONT RADAR SENSOR AIMING.)
