DOOR LOCK SWITCH REMOVAL/INSTALLATION

id091400200900

Driver's Side/Passenger's Side (With passenger's side)

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts.

(1)  Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)

(2)  Power window main switch (to remove from driver's side) (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)

(3)  Power window subswitch (to remove from passenger's side) (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

(4)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

(5)  Front door speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

3.  Remove the door lock switch.

a30zzw00004485

4.  Install in the reverse order of removal.

Liftgate Side

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the liftgate recess. (See LIFTGATE RECESS REMOVAL/INSTALLATION.)

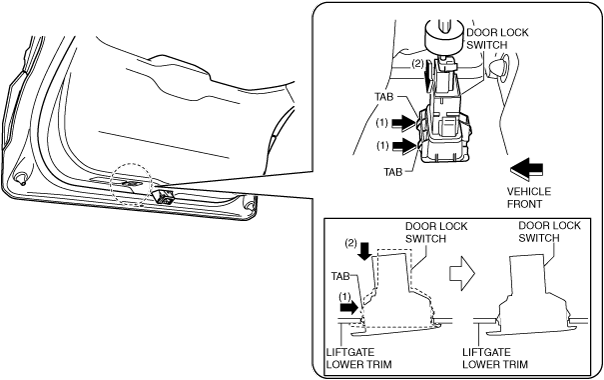

3.  While pushing the tab of the door lock switch in the direction of arrow (1) shown in the figure, push in the direction of arrow (2) and detach the tab of the door lock switch from the liftgate lower trim.

a30zzw00002478

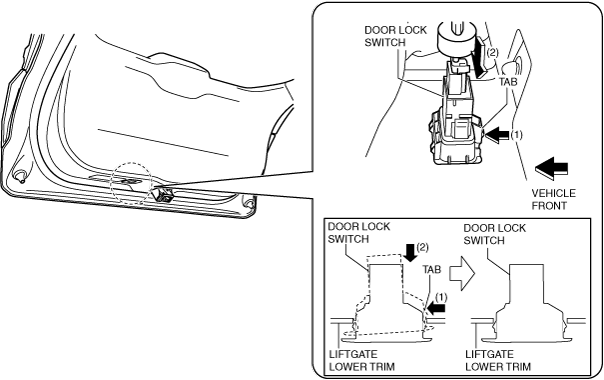

4.  While pushing the tab of the door lock switch in the direction of arrow (1) shown in the figure, push in the direction of arrow (2) and detach the tab of the door lock switch from the liftgate lower trim.

a30zzw00002479

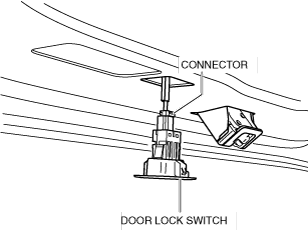

5.  Disconnect the connectors.

a30zzw00002480

6.  Remove the door lock switch.

7.  Install in the reverse order of removal.
