REAR DOOR UPPER LATCH REMOVAL/INSTALLATION

id091400201200

Warning

•  Incorrect handling of the front seat belt (front pre-tensioner seat belt) may cause the pre-tensioner to activate (deploy) unexpectedly and cause injury. Read the SRS air bag system service warnings and cautions before handling a front seat belt (front pre-tensioner seat belt).(See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].)(See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].)

1.  Disconnect the negative lead-acid battery terminal and wait for 1 min or more. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts.

(1)  Rear door lower trim (See REAR DOOR LOWER TRIM REMOVAL/INSTALLATION.)

(2)  Front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(3)  Rear door upper trim (See REAR DOOR UPPER TRIM REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

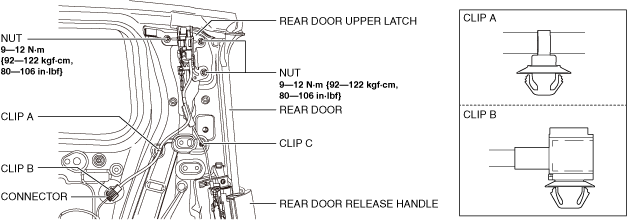

a30zzw00002484

4.  Detach clip A.

5.  Detach clip B.

6.  Disconnect the rear door upper latch cable from clip C.

7.  Remove the nuts.

8.  Disconnect the rear door upper latch cable from the rear door release handle.

9.  Install in the reverse order of removal.

10.  Adjust the door. (See DOOR ADJUSTMENT.)

Nut Installation Note

1.  Tighten nut A.

a30zzw00004325

2.  Tighten nut B.

3.  Tighten nut C.
