KEYLESS BEEPER REMOVAL/INSTALLATION

id091400202300

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

3.  Disconnect joint pipe A of the windshield washer hose. (See WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION.)

4.  Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION.)

5.  Disconnect the connectors.

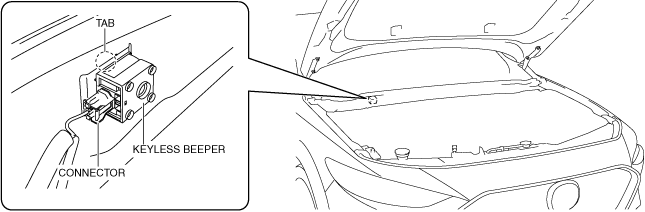

a30zzw00002513

6.  Release the tab on the keyless beeper from the bracket.

7.  Remove the keyless beeper.

8.  Install in the reverse order of removal.
