WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION

id091900701100


L.H.D.


Windshield Washer Hose A

Note
•  If the procedure is performed with washer fluid in the washer tank, the washer fluid may leak out. When performing the servicing, place a container for receiving the washer fluid under the washer tank.

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts.

(1)  Front under cover No.2 (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)
(2)  Front deflector (RH) (See DEFLECTOR REMOVAL/INSTALLATION.)
(3)  Front over fender (RH) (See FRONT OVER FENDER REMOVAL/INSTALLATION.)

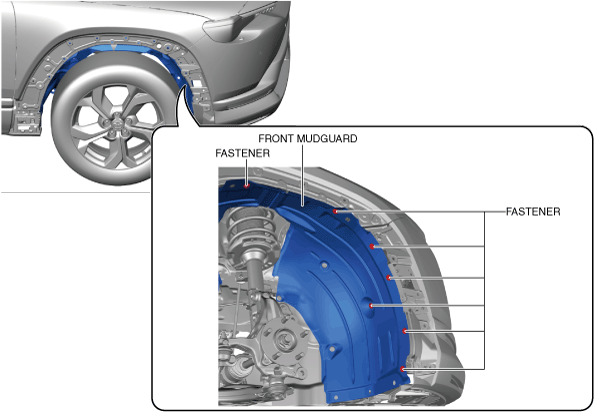

3.  Remove the fasteners.

a30zzw00003853

4.  Partially peel back the front mudguard (RH).

5.  Disconnect the windshield washer hose A from the washer motor.

a30zzw00003854

6.  Remove windshield washer hose A from the washer tank hook. (See Windshield washer hose A installation note.)

7.  Pull out windshield washer hose A from area A of the washer tank.

8.  Remove windshield washer hose A from clip A and clip B.

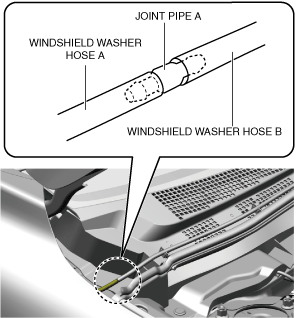

9.  Disconnect windshield washer hose A from joint pipe A.

a30zzw00003855

10.  Remove windshield washer hose A.

11.  Install in the reverse order of removal.


Windshield washer hose A installation note

When attaching windshield washer hose A to the hook of the washer tank, align the upper end of the marking with the hook.
a30zzw00003856


Windshield Washer Hose B

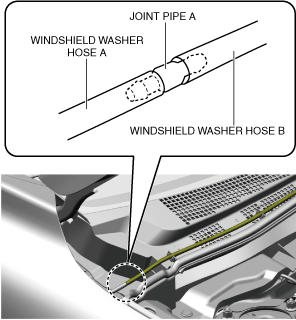

1.  Disconnect windshield washer hose B from joint pipe A.

a30zzw00003857

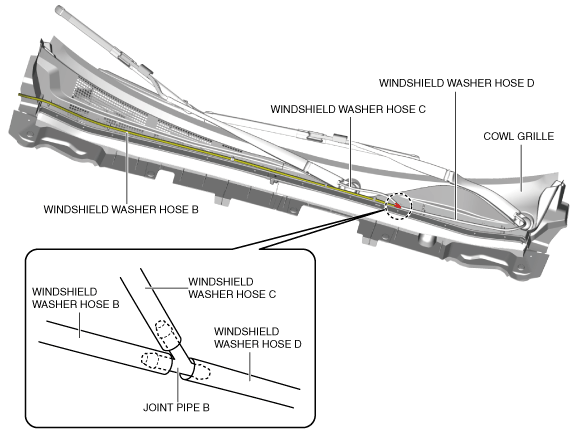

2.  Disconnect windshield washer hose B from joint pipe B.

a30zzw00003858

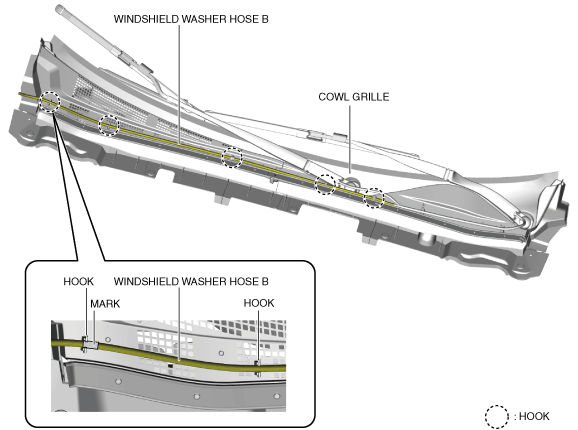

3.  Remove windshield washer hose B from the cowl grille hook.

a30zzw00003859

4.  Install in the reverse order of removal.


Windshield Washer Hose C, Windshield Washer Hose D

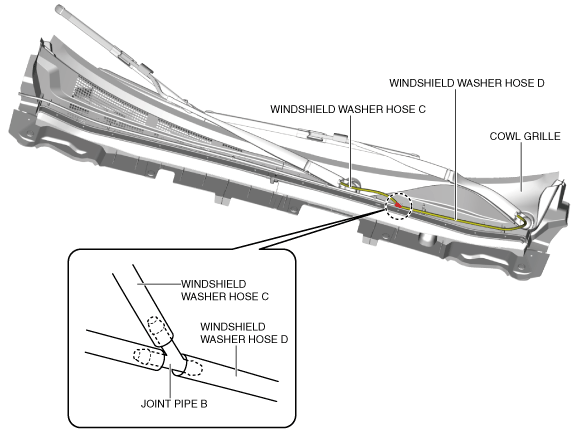

1.  Disconnect windshield washer hose C and windshield washer hose D from joint pipe B.

a30zzw00003860

2.  Disconnect windshield washer hose C from joint pipe C and remove windshield washer hose C.

a30zzw00003861

3.  Disconnect windshield washer hose D from joint pipe D.

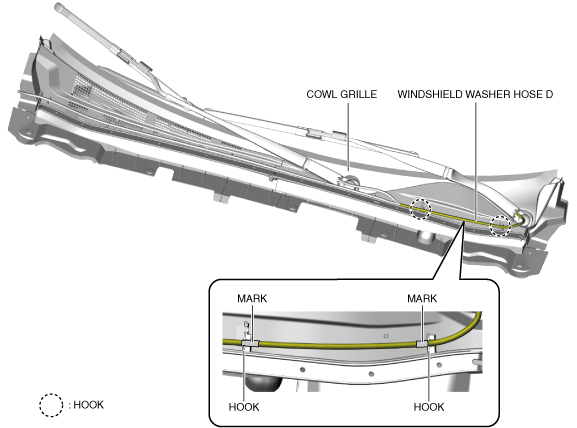

4.  Remove windshield washer hose D from the cowl grille hooks.

a30zzw00003862

5.  Install in the reverse order of removal.


R.H.D.


Windshield Washer Hose A

Note
•  If the procedure is performed with washer fluid in the washer tank, the washer fluid may leak out. When performing the servicing, place a container for receiving the washer fluid under the washer tank.

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts.

(1)  Front under cover No.2 (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)
(2)  Front deflector (RH) (See DEFLECTOR REMOVAL/INSTALLATION.)
(3)  Front over fender (RH) (See FRONT OVER FENDER REMOVAL/INSTALLATION.)

3.  Remove the fasteners.

a30zzw00003853

4.  Partially peel back the front mudguard (RH).

5.  Disconnect the windshield washer hose A from the washer motor.

a30zzw00003854

6.  Remove windshield washer hose A from the washer tank hook. (See Windshield washer hose A installation note.)

7.  Pull out windshield washer hose A from area A of the washer tank.

8.  Remove windshield washer hose A from clip A and clip B.

9.  Disconnect windshield washer hose A from joint pipe A.

a30zzw00003855

10.  Remove windshield washer hose A.

11.  Install in the reverse order of removal.


Windshield washer hose A installation note

When attaching windshield washer hose A to the hook of the washer tank, align the upper end of the marking with the hook.
a30zzw00003856


Windshield Washer Hose B, Windshield Washer Hose C

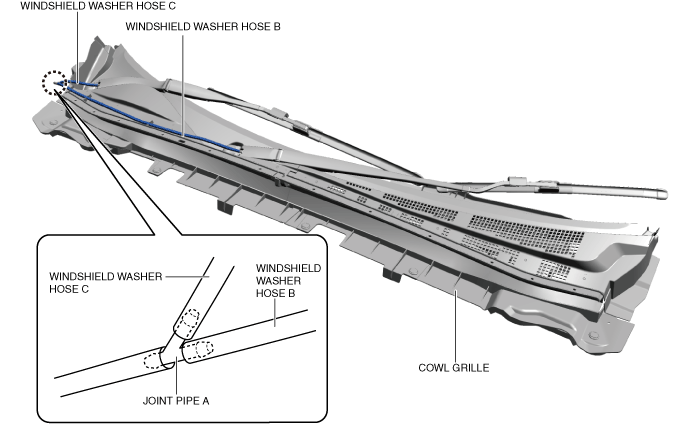

1.  Disconnect windshield washer hose B and windshield washer hose C from joint pipe A.

a30zzw00006820

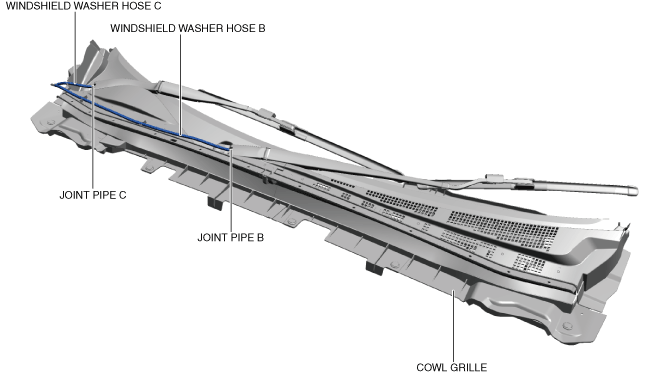

2.  Disconnect windshield washer hose B and windshield washer hose C from joint pipe B and C.

a30zzw00006821

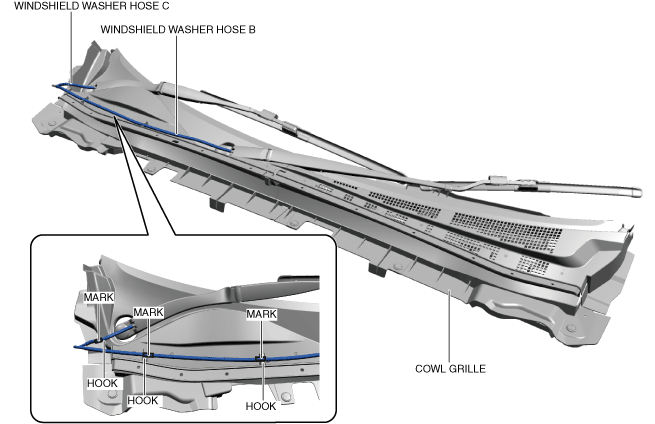

3.  Remove windshield washer hose B and windshield washer hose C from the cowl grille hooks.

a30zzw00006822

4.  Install in the reverse order of removal.
