HEEL CUSHION REMOVAL/INSTALLATION

id091700052300

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Driver-side scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Driver-side side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(4)  Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION.)

3.  Partially peel back the front floor covering.

4.  Remove the fastener.

a30zzw00000165

5.  Move the heel cushion in the direction of the arrow shown in the figure and remove it.

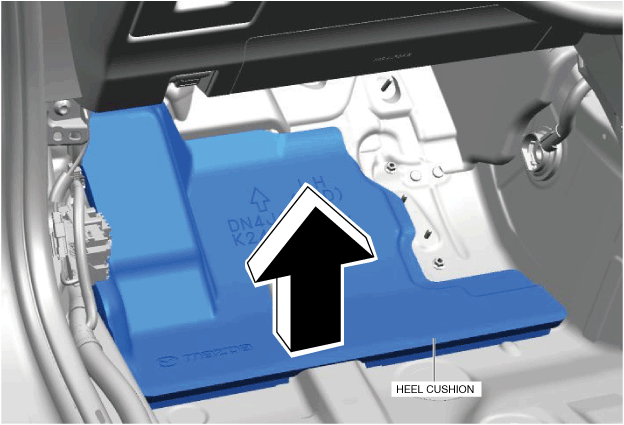

a30zzw00000166

6.  Install in the reverse order of removal.
