FRONT TURN LIGHT/PARKING LIGHT REMOVAL/INSTALLATION

id091800700900

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts.

(1)  Front bumper(See FRONT BUMPER REMOVAL/INSTALLATION [(E)].)

(2)  Curtain air duct(See FRONT BUMPER DISASSEMBLY/ASSEMBLY [(E)].)

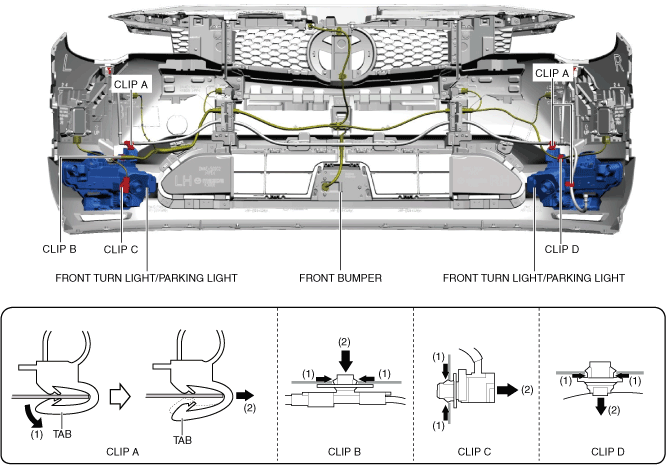

3.  While moving the tab of clip A in the direction of arrow (1) shown in the figure, move clip A in the direction of arrow (2) and remove it from the front turn light/parking light. (With headlight washer)

a30zzw00002973

4.  While pressing the tabs of clip B in the direction of arrows (1) shown in the figure, move clip B in the direction of arrow (2) to remove it from the front turn light/parking light.

5.  While pressing the tabs of clip C in the direction of arrows (1) shown in the figure, move clip C in the direction of arrow (2) to remove it from the front turn light/parking light. (With front camera)

6.  While pressing the tabs of clip D in the direction of arrows (1) shown in the figure, move clip D in the direction of arrow (2) to remove it from the front turn light/parking light. (With front side radar sensor)

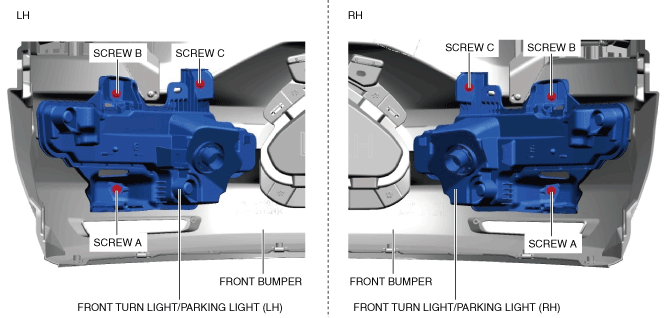

7.  Remove screws A.

a30zzw00002974

8.  Remove screws B.

9.  Remove screws C.

10.  Remove the front turn light/parking light.

11.  Install in the reverse order of removal.

12.  Perform the 360°view monitor system aiming. (with 360°view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)

13.  Perform the front radar sensor/front side radar sensor aiming. (With front side radar sensor) (See FRONT RADAR SENSOR/FRONT SIDE RADAR SENSOR AIMING.)

14.  Perform the front radar sensor aiming. (Without front side radar sensor) (See FRONT RADAR SENSOR AIMING.)
