WASHER MOTOR REMOVAL/INSTALLATION

id091900700700

Note

•  If the procedure is performed with washer fluid in the washer tank, the washer fluid may leak out. When performing the servicing, place a container for receiving the washer fluid under the washer tank.

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts.

(1)  Front under cover No.2 (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

(2)  Front deflector (RH) (See DEFLECTOR REMOVAL/INSTALLATION.)

(3)  Front over fender (RH) (See FRONT OVER FENDER REMOVAL/INSTALLATION.)

3.  Remove the fasteners.

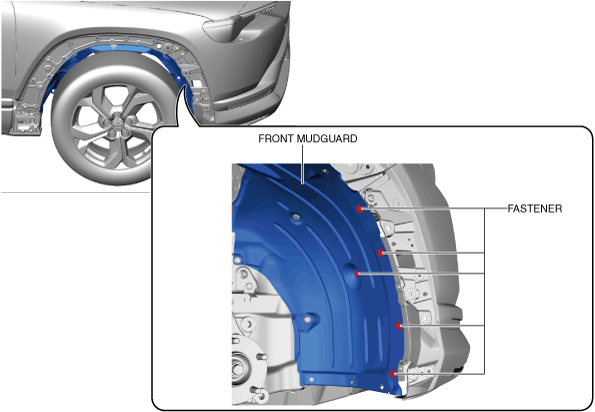

a30zzw00003846

4.  Partially peel back the front mudguard (RH).

5.  Disconnect the connectors.

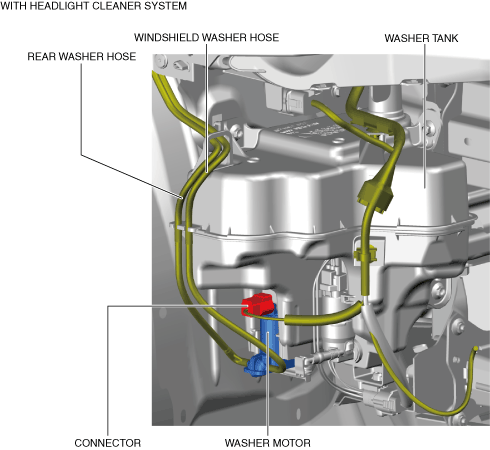

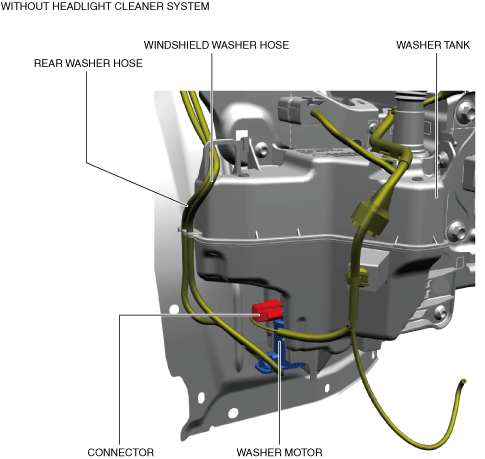

a30zzw00006770

a30zzw00003847

6.  Disconnect the windshield washer hose and the rear washer hose from the washer motor.

7.  Remove the washer motor in the direction of the arrow shown in the figure.

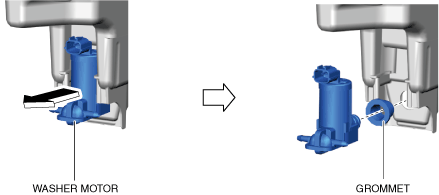

a30zzw00003848

8.  Remove the grommet.

9.  Install in the reverse order of removal.
