REAR WIPER MOTOR REMOVAL/INSTALLATION

id091900701400

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts.

(1)  Rear wiper arm and blade (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

(2)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(3)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(4)  Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION.)

(5)  Door lock switch (liftgate) (With door lock switch (liftgate)) (See DOOR LOCK SWITCH REMOVAL/INSTALLATION.)

(6)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

3.  Disconnect the connectors.

a30zzw00003869

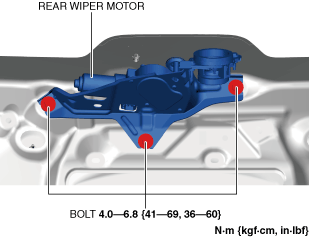

4.  Remove the bolts. (See Bolt Installation Note.)

a30zzw00003870

5.  Remove the rear wiper motor by pulling it out of the hole in the outer bushing.

a30zzw00003871

6.  Push the outer bushing from outside the liftgate.

a30zzw00003872

7.  Pull the outer bushing from inside the liftgate and remove it.

8.  Install in the reverse order of removal.

Note

•  When replacing the rear wiper motor, remove the notification and warning speaker (rear). (With notification and warning speaker) (See NOTIFICATION AND WARNING SPEAKER REMOVAL/INSTALLATION.)

Bolt Installation Note

1.  Temporarily tighten bolt A.

a30zzw00003873

2.  Completely tighten bolt B.

3.  Completely tighten bolt A.

4.  Completely tighten bolt C.
