HEADLIGHT CLEANER MOTOR REMOVAL/INSTALLATION

id091900701900

Note

•  If the procedure is performed with washer fluid in the washer tank, the washer fluid may leak out. When performing the servicing, place a container for receiving the washer fluid under the washer tank.

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front bumper.(See FRONT BUMPER REMOVAL/INSTALLATION [(E)].)

3.  Disconnect the connectors.

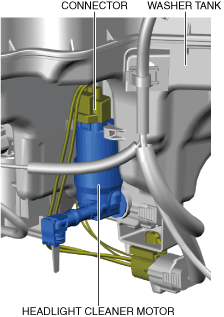

a30zzw00003890

4.  Remove the headlight cleaner motor.

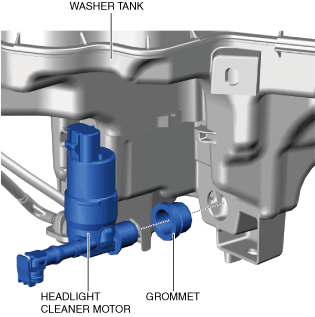

a30zzw00003891

5.  Remove the grommet.

6.  Install in the reverse order of removal. (See Headlight Cleaner Motor Installation Note.)

7.  Perform the 360°view monitor system aiming. (with 360°view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)

8.  Perform the front radar sensor/front side radar sensor aiming. (With front side radar sensor) (See FRONT RADAR SENSOR/FRONT SIDE RADAR SENSOR AIMING.)

9.  Perform the front radar sensor aiming. (Without front side radar sensor) (See FRONT RADAR SENSOR AIMING.)

Headlight Cleaner Motor Installation Note

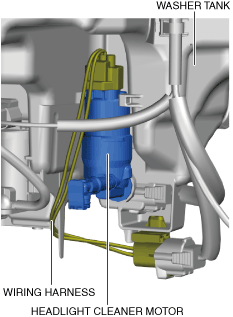

1.  Install the wiring harness as shown in the figure.

a30zzw00003892
