HEADLIGHT CLEANER NOZZLE REMOVAL/INSTALLATION

id091900702000

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front bumper.(See FRONT BUMPER REMOVAL/INSTALLATION [(E)].)

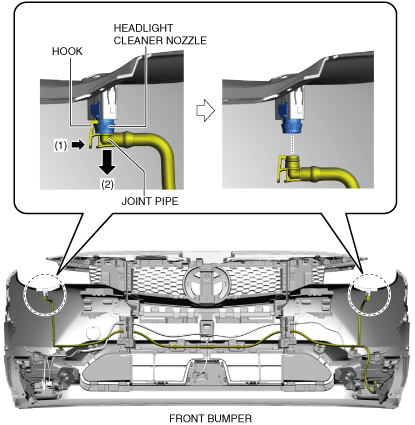

3.  While pushing the hook of the joint pipe in the direction of arrow (1) shown in the figure, move the joint pipe in the direction of arrow (2) shown in the figure and separate the joint pipe from the headlight cleaner nozzle.

a30zzw00003893

4.  While moving the tab of the headlight cleaner nozzle in the direction of arrow (1) shown in the figure, move the headlight cleaner nozzle in the direction of arrow (2) shown in the figure and detach the headlight cleaner nozzle from the headlight cleaner cover.

a30zzw00003894

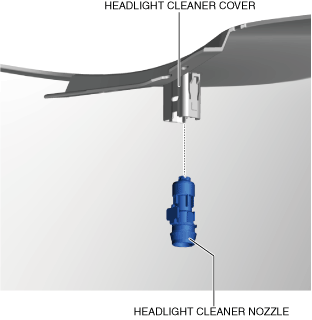

5.  Remove the headlight cleaner nozzle.

a30zzw00003895

6.  Install in the reverse order of removal.

7.  Perform the 360°view monitor system aiming. (with 360°view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)

8.  Perform the front radar sensor/front side radar sensor aiming. (With front side radar sensor) (See FRONT RADAR SENSOR/FRONT SIDE RADAR SENSOR AIMING.)

9.  Perform the front radar sensor aiming. (Without front side radar sensor) (See FRONT RADAR SENSOR AIMING.)
