REMOTE TUNER (RT) REMOVAL/INSTALLATION [(E)]

id0920007008x2

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

(2)  Trunk side upper trim (RH) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(3)  Rear pillar trim (RH) (See REAR PILLAR TRIM REMOVAL/INSTALLATION.)

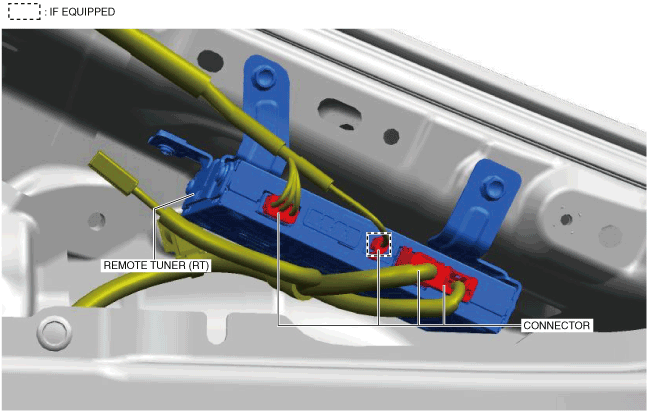

3.  Disconnect the connectors.

a30zzw00006007

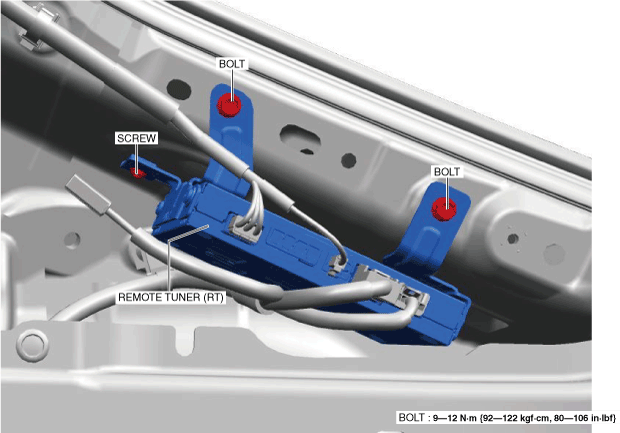

4.  Remove the bolts.

a30zzw00006008

5.  Remove the screw.

6.  Remove the remote tuner.

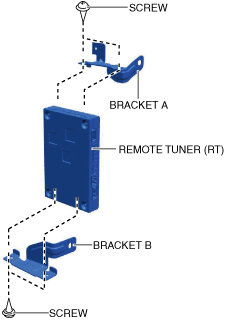

7.  To remove brackets A and B, use the following procedure.

(1)  Remove the screws.

a30zzw00000183

(2)  Remove bracket A.

(3)  Remove the screws.

(4)  Remove bracket B.

8.  Install in the reverse order of removal.
