REAR SPEAKER REMOVAL/INSTALLATION

id092000701400

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

(2)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(3)  Rear pillar trim (See REAR PILLAR TRIM REMOVAL/INSTALLATION.)

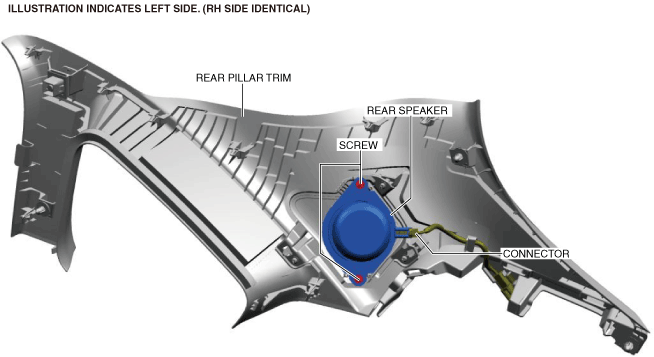

3.  Remove the screws.

a30zzw00000376

4.  Disconnect the connector.

5.  Remove the rear speaker.

6.  Install in the reverse order of removal.
