FRONT ULTRASONIC SENSOR REMOVAL/INSTALLATION

id092200701400

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front bumper.(See FRONT BUMPER REMOVAL/INSTALLATION [(E)].)

3.  Disconnect the connectors.

a30zzw00003942

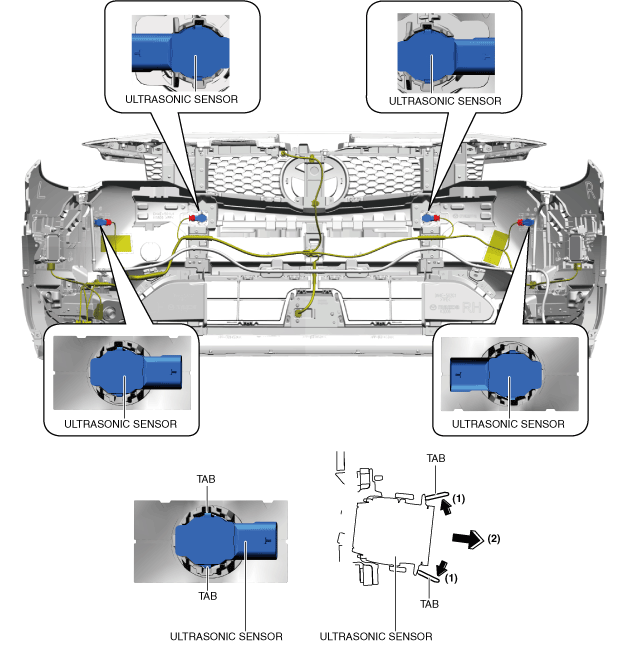

4.  Pull the front ultrasonic sensor in the direction of arrow (2) while moving the tabs of the retainer in the direction of arrows (1) shown in the figure, and remove it.

a30zzw00003943

5.  Install in the reverse order of removal.

6.  Perform the 360°view monitor system aiming. (with 360°view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)

7.  Perform the front radar sensor/front side radar sensor aiming. (With front side radar sensor) (See FRONT RADAR SENSOR/FRONT SIDE RADAR SENSOR AIMING.)

8.  Perform the front radar sensor aiming. (Without front side radar sensor) (See FRONT RADAR SENSOR AIMING.)
