FRONT ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION

id092200701600

Replacement parts

Tape

Quantity: 2

Location of use: Front ultrasonic sensor short cord

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front bumper.(See FRONT BUMPER REMOVAL/INSTALLATION [(E)].)

3.  Remove the protector.(See FRONT BUMPER DISASSEMBLY/ASSEMBLY [(E)].)

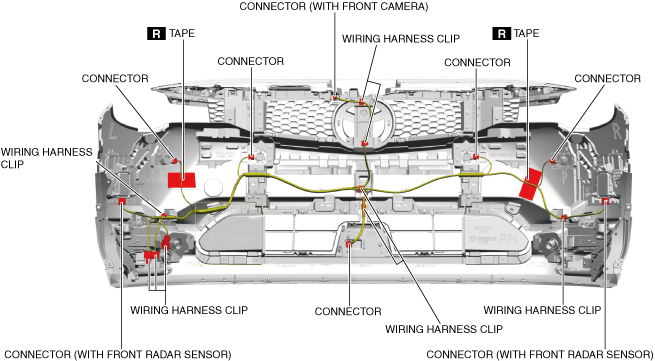

4.  Remove the tape.

a30zzw00003944

5.  Disconnect the connectors.

6.  Detach the wiring harness clips.

7.  Remove the front ultrasonic sensor short cord.

8.  Install in the reverse order of removal.

9.  Perform the 360°view monitor system aiming. (with 360°view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)

10.  Perform the front radar sensor/front side radar sensor aiming. (With front side radar sensor) (See FRONT RADAR SENSOR/FRONT SIDE RADAR SENSOR AIMING.)

11.  Perform the front radar sensor aiming. (Without front side radar sensor) (See FRONT RADAR SENSOR AIMING.)
