NOTIFICATION AND WARNING SPEAKER [(E)]

id0922007051x2


Purpose

•  The notification and warning speaker is activated by the signal from the body control module (BCM).

Functions

•  Full-range speakers, which can output wide-range sound from low to high frequency, have been adopted.

Structure/Construction

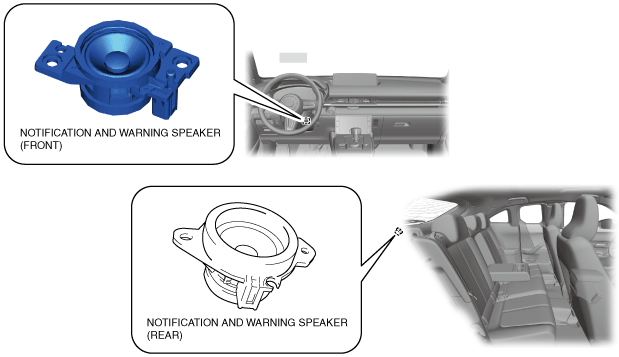

•  The notification and warning speaker (front) is installed inside the column cover.
•  The notification and warning speaker (rear) is installed inside the liftgate lower trim.
•  A cone-shaped dynamic speaker has been adopted for the notification and warning speakers.
a30zzn00000682

Operation

•  The alarm types are as follows: For details on each alarm, refer to each reference.

Name

Reference
Smart brake support (SBS) warning alarm
(See WARNING/INDICATION/ALARM [(E)].)
Lane departure warning sound
(See WARNING/INDICATION/ALARM [(E)].)
Blind spot monitoring (BSM) warning buzzer
(See WARNING/INDICATION/ALARM [(E)].)
Mazda Radar Cruise Control (MRCC) system warning alarm
(See WARNING/INDICATION/ALARM [(E)].)
Cruising & traffic support (CTS) warning alarm
(See WARNING/INDICATION/ALARM [(E)].)
Emergency lane keeping warning alarm
(See WARNING/INDICATION/ALARM [(E)].)
Electric parking brake chime
(See WARNING/INDICATION/ALARM [(E)].)
Keyless warning alarm
(See WARNING/INDICATION/ALARM.)
AUTOHOLD warning beep
(See WARNING/INDICATION/ALARM [(E)].)
Panel light control indicator alarm
(See WARNING/INDICATION/ALARM [(E)].)
Seat belt warning alarm
(See WARNING/INDICATION/ALARM [(E)].)
Driver attention alert
(See WARNING/INDICATION/ALARM [(E)].)
Driver monitoring (DM) alert
(See WARNING/INDICATION/ALARM [(E)].)
Lights-on reminder warning alarm
(See WARNING/INDICATION/ALARM [(E)].)
Excessive speed warning sound
(See WARNING/INDICATION/ALARM [(E)].)
Parking sensor buzzer
(See PARKING SENSOR SYSTEM.)
Turn and hazard indicator alarm
(See WARNING/INDICATION/ALARM [(E)].)
