DTC U0100:31 [DRIVE MOTOR CONTROL MODULE (e-SKYACTIV)]
id300203051200
Outline
System malfunction location |
CAN communication: Communication error with PCM (CAN BUS No.2) |
||||
---|---|---|---|---|---|
Detection condition
|
• The drive motor control module detects for the specified period of time that the drive motor control module cannot receive CAN signals from the PCM or the data length of the received CAN signal is short.
|
||||
Fail-safe
|
• Not applicable
|
||||
Possible cause
|

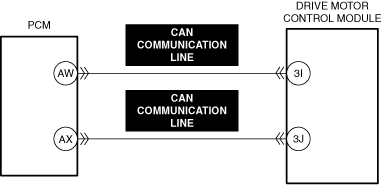

• CAN communication line malfunction between PCM and drive motor control module (CAN BUS No.2)
• PCM connector or terminals malfunction
• Drive motor control module connector or terminals malfunction
• PCM malfunction
• Drive motor control module malfunction
|
||||
![]() |
|||||
![]() |
|||||
![]() |
Diagnostic Procedure
Step |
Inspection |
Results |
Action |
---|---|---|---|
1
|
RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION
• Record the snapshot data.
|
—
|
Go to the next step.
|
2
|
INSPECT FOR OTHER RELATED DTCs
• Perform the DTC inspection for the drive motor control module.
(See DTC INSPECTION.)
• Are any other DTCs displayed?
|
Yes
|
Repair the malfunctioning location according to the applicable DTC troubleshooting.
|
No
|
Go to the next step.
|
||
3
|
VERIFY PCM DTC
• Perform the DTC inspection for the PCM.
(See DTC INSPECTION.)
• Are any other DTCs displayed?
|
Yes
|
Repair the malfunctioning location according to the applicable DTC troubleshooting.
(See DTC TABLE [PCM (e-SKYACTIV)].)
|
No
|
Go to the next step.
|
||
4
|
INSPECT PCM CONNECTOR FOR MALFUNCTION
• Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)
• Are the connector and terminal normal?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the malfunctioning location and perform the repair completion verification 1.
|
||
5
|
INSPECT DRIVE MOTOR CONTROL MODULE CONNECTOR FOR MALFUNCTION
• Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)
• Are the connector and terminal normal?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the malfunctioning location and perform the repair completion verification 1.
|
||
Repair completion verification 1
|
VERIFY THAT VEHICLE IS REPAIRED
• Install/connect the part removed/disconnected during the troubleshooting procedure.
• Replicate the vehicle conditions at the time the DTC was detected using the following procedure.
• Perform the DTC inspection for the drive motor control module.
(See DTC INSPECTION.)
• Is the same Pending DTC present?
|
Yes
|
Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.
If the CAN communication is normal, perform the diagnosis from Step 1.
• If the malfunction recurs, replace the drive motor control module, then go to the next step.
|
No
|
Go to the next step.
|
||
Repair completion verification 2
|
VERIFY IF OTHER DTCs DISPLAYED
• Perform the DTC inspection.
(See DTC INSPECTION.)
• Are any other DTCs displayed?
|
Yes
|
Repair the malfunctioning location according to the applicable DTC troubleshooting.
|
No
|
Go to the next step.
|
||
Repair completion verification 3
|
VERIFY THAT NO OTHER MALFUNCTION OCCURS
• Drive the vehicle for 10 min or more.
• Perform the DTC inspection.
(See DTC INSPECTION.)
• Are any DTCs displayed?
|
Yes
|
Repair the malfunctioning location according to the applicable DTC troubleshooting.
|
No
|
DTC troubleshooting completed.
|
