CHARGE INDICATOR DOES NOT ILLUMINATE/FLASH

id300300002600

Outline

Malfunction symptom

Charge indicator does not illuminate/flash

Description

•  The charge indicator (green) does not flash during charging.

•  The charge indicator (green) does not illuminate after charging has completed.

•  The charge indicator (white) does not illuminate/flash before charging starts.

Possible cause

Note

•  When the charge connector is inserted before charging starts, the charge indicator does not turn on/flash.

Charging indicator illumination circuit malfunction:

•  PCM detects DTCs

―  Charge port-electrical supply unit detects malfunction in charge indicator illumination circuit

•  Open circuit in charge indicator control circuit

•  Charge indicator malfunction

System wiring diagram

Connector diagram

Malfunction symptom	Charge indicator does not illuminate/flash
Description	• The charge indicator (green) does not flash during charging. • The charge indicator (green) does not illuminate after charging has completed. • The charge indicator (white) does not illuminate/flash before charging starts.
Possible cause	Note • When the charge connector is inserted before charging starts, the charge indicator does not turn on/flash. Charging indicator illumination circuit malfunction: • PCM detects DTCs ― Charge port-electrical supply unit detects malfunction in charge indicator illumination circuit • Open circuit in charge indicator control circuit • Charge indicator malfunction

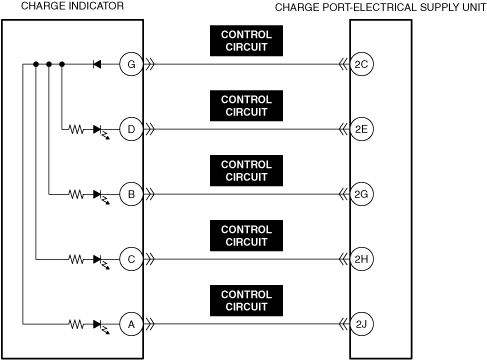

System wiring diagram
Connector diagram

Diagnostic Procedure

Step

Inspection

Results

Action

1

VERIFY PCM DTCs

•  Perform the DTC inspection for the PCM.
(See DTC INSPECTION.)

•  Are charge indicator related DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [PCM (e-SKYACTIV)].)

No

Go to the next step.

2

VERIFY OPEN CIRCUIT IN CHARGE INDICATOR CONTROL CIRCUIT

•  Inspect the applicable circuit for an open circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

3

INSPECT CHARGE INDICATOR FOR MALFUNCTION

•  Inspect the applicable part.
(See CHARGE INDICATOR INSPECTION.)

•  Is the part normal?

Yes

Go to the next step.

No

Replace the malfunctioning location and perform the repair completion verification.

(See CHARGE LID BOX ASSEMBLY REMOVAL/INSTALLATION.)

Repair completion verification

VERIFY THAT VEHICLE IS REPAIRED

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Has the malfunction symptom been eliminated?

Yes

Complete the symptom troubleshooting. (Explain repair contents to customer.)

No

Refer to the CAN (controller area network) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [L.H.D. (E)] .)

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [R.H.D.] .)

Step	Inspection	Results	Action
1	VERIFY PCM DTCs • Perform the DTC inspection for the PCM. (See DTC INSPECTION.) • Are charge indicator related DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [PCM (e-SKYACTIV)].)
1		No	Go to the next step.
2	VERIFY OPEN CIRCUIT IN CHARGE INDICATOR CONTROL CIRCUIT • Inspect the applicable circuit for an open circuit. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
2		No	Repair or replace the malfunctioning location and perform the repair completion verification.
3	INSPECT CHARGE INDICATOR FOR MALFUNCTION • Inspect the applicable part. (See CHARGE INDICATOR INSPECTION.) • Is the part normal?	Yes	Go to the next step.
3		No	Replace the malfunctioning location and perform the repair completion verification. (See CHARGE LID BOX ASSEMBLY REMOVAL/INSTALLATION.)
Repair completion verification	VERIFY THAT VEHICLE IS REPAIRED • Install/connect the part removed/disconnected during the troubleshooting procedure. • Has the malfunction symptom been eliminated?	Yes	Complete the symptom troubleshooting. (Explain repair contents to customer.)
Repair completion verification		No	Refer to the CAN (controller area network) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [L.H.D. (E)] .) (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [R.H.D.] .)
